Product Information
HD-SDI Video Cable

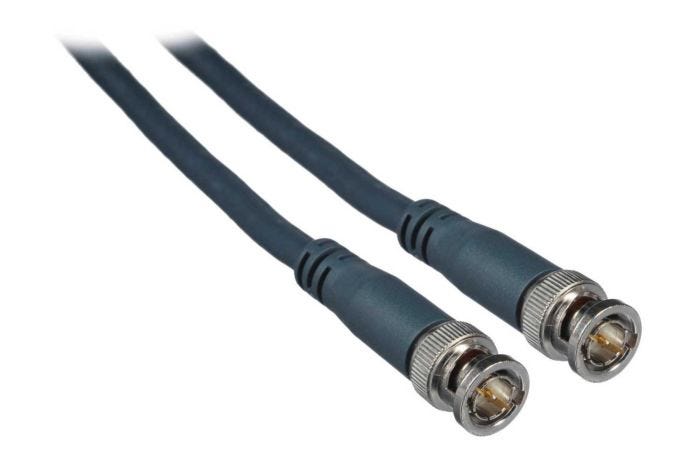

Kramer's C-BM/BM is constructed of high performance RG-6 cable with 75Ω BNC connectors at each end. It offers outstanding quality, durability, and high performance for any video signal application.
- Quality Construction - RG–6 cable for the highest resolution signals.
- High–Quality Connectors - True 75Ω BNC connectors maintain correct impedance end-to-end.
- Varied Selection of Lengths - Available in versions of 1.5 to 150ft (0.5 to 45.7m).
- Cable Specs - Tested to 3G. For detailed cable specs, see Kramer BC-1X.
- Quality Construction - RG–6 cable for the highest resolution signals.
- High-Quality Connectors - True 75Ω BNC connectors maintain correct impedance end-to-end.
- Varied Selection of Lengths - Available in versions of 1.5 to 150ft (0.5 to 45.7m).
- Cable Specs - Tested to 3G. For detailed cable specs, see Kramer BC-1X.
| Coax | Conductor: 18 AWG solid bare copper Dielectric: Skin foam Shield: (A) 61% braid 34 AWG aluminum wire Shield: (B) Dual foil/Mylar 25% overlap rate |
|---|---|
| Construction | Outside Jacket: PVC Outside Jacket Colour: Dark gray with white lettering |
| Diameters | Center Conductor: 1.02mm (0.0403in) Dielectric: 4.57mm (0.179in) Outside Diameter: 6.95mm (0.391in) |
| Electrical | Impedance: 75Ω DC Resistance: 21.8Ω/km (6.6Ω/1000ft) Capacitance: 53.1pF/m (16.1pF/ft) Velocity of Propagation: 82% Temperature: –20° to 75°C (–4° to 167°F) Attenuation (dB/100 ft.): –0.3dB @1MHz Attenuation (dB/100 ft.): –0.6dB @5MHz Attenuation (dB/100 ft.): –0.8dB @10MHz Attenuation (dB/100 ft.): –1.6dB @50MHz Attenuation (dB/100 ft.): –2.0dB @100MHz Attenuation (dB/100 ft.): –2.8dB @180MHz Attenuation (dB/100 ft.): –4.4dB @400MHz Attenuation (dB/100 ft.): –5.7dB @750MHz Attenuation (dB/100 ft.): –6.7dB @1000MHz |
| Regulatory | UL: CL2 CSA: C(UL) CL2 |
