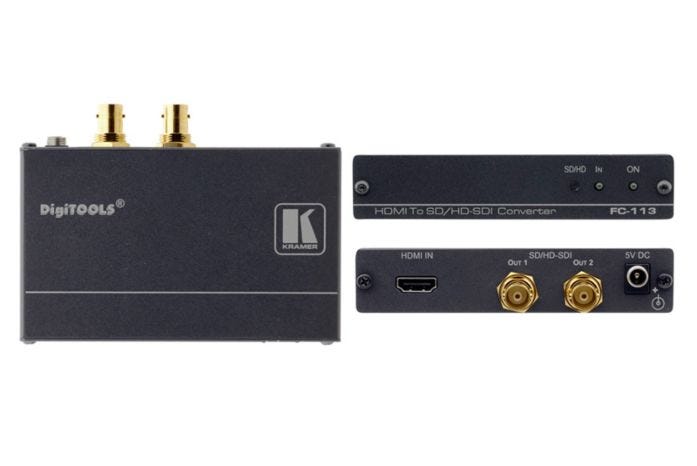

Kramer's FC-113 is a high-performance format converter for HDMI signals. It converts an HDMI input signal to two identical SDI video with embedded audio signals.
Key Features: Max. Data Rate - 3Gbps HDTV Compatible Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD SDI (SMPTE 424M) No Frame Rate or Resolution Conversion Active Input LED Reporting - Green indicates standard definition (SDI),blue indicates a high-definition (HD-SDI) input signal, flashing indicates HDCP on the HDMI signal HDCP Encryption - Since the HD-SDI standard does not support HDCP, the status LED flashes when an HDCP encrypted input signal is detected, indicating that the input signal cannot be converted Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
Input: 1 HDMI connector Outputs: 2 SD/HD-SDI, 3G HD-SDI on BNC connectors Max. Data Rate: Up to 3Gbps Standard Compliance: HDMI 1.3 Indicator LEDS: SD/HD, OUT, ON Power Source: 5V DC, 440ma Dimensions: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H Weight: 0.3kg (0.7lbs) Accessories: Power supply Options: RK-3T 19" rack adapter
