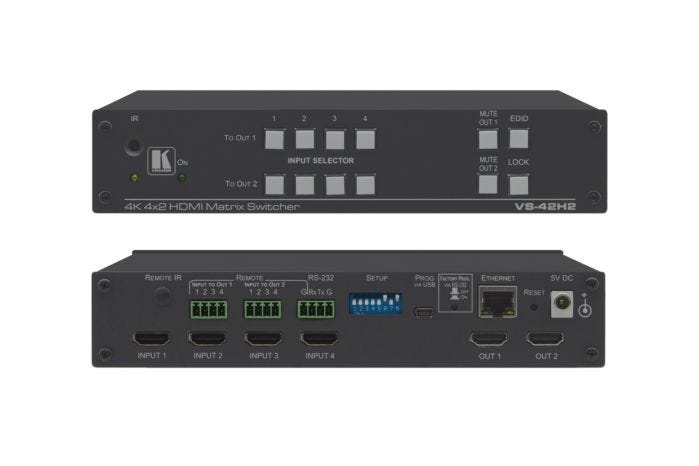

Kramer 4x2 4K HDR HDMI HDCP 2.2 Matrix Switcher
Availability:In stock
Cat No.
41592
SKU
VS-42H2
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,024.80
£854.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Kramer 4x2 4K HDR HDMI HDCP 2.2 Matrix Switcher
- High–Performance AV Matrix — Switches 4 4K@60Hz (4:4:4) HDR HDMI HDCP–compliant signals to 2 18G 4K@60Hz (4:4:4) HDR HDMI HDCP–compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant.
- Kramer Equalization & reKlocking™ Technology — Rebuilds the digital signal to travel longer distances.
- EDID Management — Individual EDID management per input. Captures and stores the EDID from a display device.
- Flexible Content Protection — Selectable HDCP per input.
- Quick Access to Common Configurations — Save up to six preset configurations.
- Convenient Unit Control and Configuration — Local control via front panel switching, mute, lock and EDID buttons, and IR remote control. Distance control via user–friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS–232 serial commands transmitted by a PC, touch screen system or other serial controller.
- Cost–Effective Maintenance — Power status, IR and Input Selection indicators facilitate easy local maintenance and troubleshooting. Local firmware upgrade via USB or RS–232 connection ensures lasting, field–proven deployment.
- Easy Installation — Half–19” size enables mounting in a 1U rack space with the recommended rack adapter.
| Inputs | 4 HDMI: On female HDMI connectors |
|---|---|
| Outputs | 2 HDMI: On female HDMI connectors |
| Ports | 1 Ethernet: On an RJ–45 female connector 1 RS-232: On a 3–pin terminal blocks 1 USB: On a mini USB connector 8 Remote Selection Contact-Closure Switches: On 9 terminal block pins |
| Video | Max. Resolution: 4K@60Hz 4:4:4 Max. Data Rate: 18Gbps (6Gbps per graphic channel) Compliance: HDCP 2.2/1.4 |
| User Interface | Control: Input selector, output mute, EDID capture, and panel lock buttons. DIP switch HDCP configuration Indicators: Switching, IR, and power LEDs |
| Power | Source: 5V DC Consumption: 2.5A |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RH non–condensing |
| Standards Compliance | Safety: CE Environmental: RoHs, WEEE |
| Enclosure | Size: Half–19” 1U Type: Aluminum Cooling: Convection ventillation |
| Accessories | Included: Power adapter, rubber feet, IR remote control transmitter (upon request) |
| Included Accessories | Power adapter |
| Product Dimensions | 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H |
| Product Weight | 1.0kg (2.1lbs) approx. |
| Shipping Dimensions | 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H |
| Shipping Weight | 1.6kg (3.6lbs) approx. |
