Kiloview P1 HD/3G-SDI Wireless 4G-LTE Bonding Video Encoder

Kiloview P1 HD/3G-SDI Wireless 4G-LTE Bonding Video Encoder

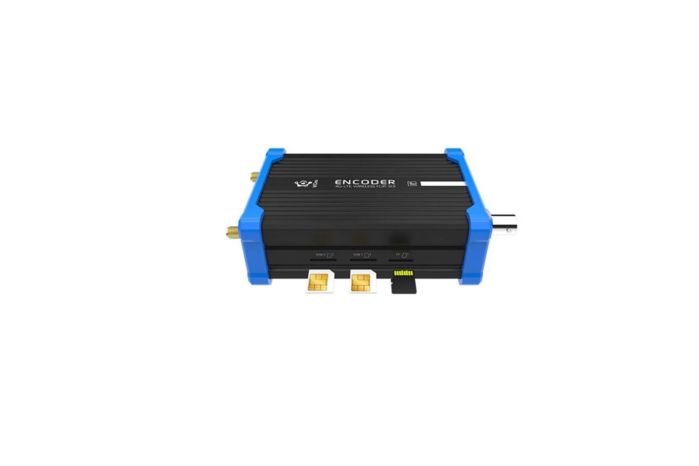

Kiloview P1 video encoder is a professional high-end encoding device specially designed for mobile applications. It can encode SDI video source , then transmit it to the internet live broadcast platforms through the multi-channels 4G-LTE network (bonding).

It also supports wired/wifi network transmission. P1 encoder has approved by CE,FCC,ISO,etc.

Reliable & portable video encoding transmission, suitable for a variety of outdoor live broadcast applications

• Total weight is only 400g (including battery), with hot shoe bracket, it can be mounted on camera for portable application.
• Supports 5 channels bonding including 4 channels 4G-LTE and 1 channel Wifi/Ethernet by USB, transmission bandwidth is greatly expanded to improve the reliability of video wireless transmission.
• Built-in large-capacity lithium battery lasts about 3 hours, it also supports 5-16v external mobile power supply, making continuous working possible.
• Internal cooling fan makes the encoder adapting to high temperature conditions, stable and reliable operation.

Advanced encoding and transmission technology, Kiloview P series video encoder has high bandwidth adaptability, makes it possible to transmit high-definition, low-latency, good image under low bit network.

• With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission. Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network.
• Advanced video buffering technology, dynamic rate adjustment technology, FEC technology and links aggregation technology to ensure video encoding delay ≤ 67ms and stable transmission.
• Adjustable bit rate from 64kbit/s～40Mbit/s.

Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif and SRT protocols, supports image and characters overlay, voice intercom and other functions

• RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP（customization avaliable）and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform / NVR system.
• SRT supported to ensure secure and reliable transmission.
• Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.
• Capable with customized text and image overlay function, which can be at any position on the screen.
• Voice intercom function (need to deploy voice intercom software).
• With SD/TF card slot, it supports local recording, and supports NAS network storage.

• H.264 video encoding
• SDK Provided
• Branded chips
• Multi-channels 4G-LTE bonding
• Removable hot shoe
• Low bandwidth transmission
