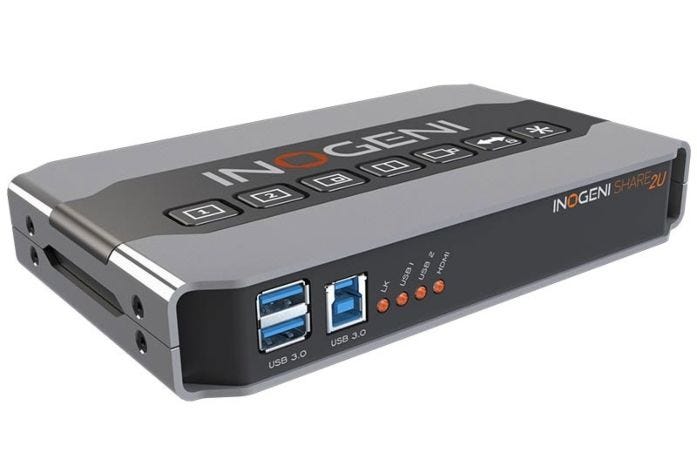

INOGENI SHARE 2U USB Camera Mixer
Availability:In stock
Cat No.
45519
SKU
INO-SHARE2U
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,980.00
£1,650.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
INOGENI SHARE 2U USB Camera Mixer
The INO-SHARE2U Camera Mixer allows you to optimize your video collaboration and webcast with two cameras. It is the most reliable tool for simultaneous capture and mix of two streams of USB or USB &HDMI plus audio into one single USB 3.0 stream. It works with Skype®, Zoom®, Webex®, GoToMeeting®, Hangouts® and reduces hardware complexity and connections to your computer.
Feature summary:
The device can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on top of the device to control it manually.You can use the Mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
OEM and system developers friendly
The device may be controlled by INOGENI's APP or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, etc. and ask for custom functionalities. You can also get Crestron modules in order to control the device using the LAN or serial interface.
Control App
The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the Camera and Content inputs. You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand.
Key Features:
- Dual USB Video to USB 3.0 Multi I/O Capture
- Line level stereo audio support
- Digital Fluid technology: Internal frame buffers maximize frame rate with any host
- Hardware-based colour space and sampling conversion
- Mixer feature: Hardware mixer into a single USB 3.0 interface
- Control interface : LAN, RS-232, USB
- Local and remote keypad
- USB 2.0 cameras and HDMI capture
- HDMI output for preview
- Screen Layouts: Single 1, Single 2, Side by Side, Big and Small, Picture in Picture (PIP)
- Compatible with Windows, OSX and Linux
- For Skype, Zoom, Webex, GoToMeeting, Hangouts
- Mix two streams plus audio into one single USB 3.0 stream.
- Compatible with Windows, OSX and Linux
| Model | INO-SHARE2U |
|---|---|
| Feature Summary | Simultaneous capture and mix of 2x USB2 signals + Audio into one 1080P60 USB3 signal. |
| Video Input 1 | 1x USB 2.0 camera MJPEG or H264 (*) Depends on the camera specifications. Supported USB 2.0 cameras |
| Video Input 2 | 1x USB 2.0 camera MJPEG or H264 (*) Depends on the camera specifications. Supported USB 2.0 cameras - OR - 1x HDMI (1080p60 supported for S/N greater than SU2111xxx and SUM111xxx) |
| Color Space | HDMI : RGB, YCbCr 4:4:4 and 4:2:2 |
| Analog Audio Connections | Analog stereo, line level, 3.5mm jack. |
| Analog Audio I/O | 2-channel LPCM 48kHz audio from line input or embedded in HDMI or USB. |
| Audio Routing | See following link for SHARE2 and SHARE2U audio routing. |
| HDCP-Compliant | The device is HDCP-compliant. It will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
| Camera Control | RS-232 on terminal block. |
| IP Interface | 10 Mbps Static address configuration through our Control App. DHCP not supported. |
| Mixer Control | Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232 (SHARE2 requires installation of COM port driver. See Support tab.) |
| Output Connector | 1x USB 3.0 and 1x HDMI (One mixed video stream) up to 1080p60. |
| Color Space | USB 3.0: YCbCr (YUY2) 4:2:2 8-bit. USB 2.0: MJPEG |
| Video Scaler, Color Space Conversion, Sampling & Frame Rate Conversion | Automatic hardware based. |
| USB Expansion | Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host. |
| Operating Systems | NO driver installation necessary!
Windows 7 and above (32/64-bit) |
| Minimal Host Requirements | USB 3.0 port 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory |
| Cameras Supported | Depends on the camera specifications Supported USB 2.0 cameras. |
| Software Compatibility | UVC-compliant. Runs with all software compatible to DirectShow, AV Foundation and V4L2.UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2. |
| Adapters/Cables included | Power supply, USB 3.0 cable, RS-232 terminal bock adapter. |
| Dimensions & Weight | 18.5cm x 11cm x 3cm, 540g |
| Operating Temperature | 0° to 45° C 32° to 113° F |
| Storage Temperature | -40° to 105° C -40° to 221° F |
| Relative Humidity | 0% to 90% non-condensing |
| Power | 12V, 700mA. Power supply included |
| UPC Code | 040232633843 |
| Origin | Canada |
| Warranty | 2 years |
