INOGENI HD to USB 3.0 Converter
Availability:In stock
Cat No.
45525
SKU
INO-HD2USB3
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£390.00
£325.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

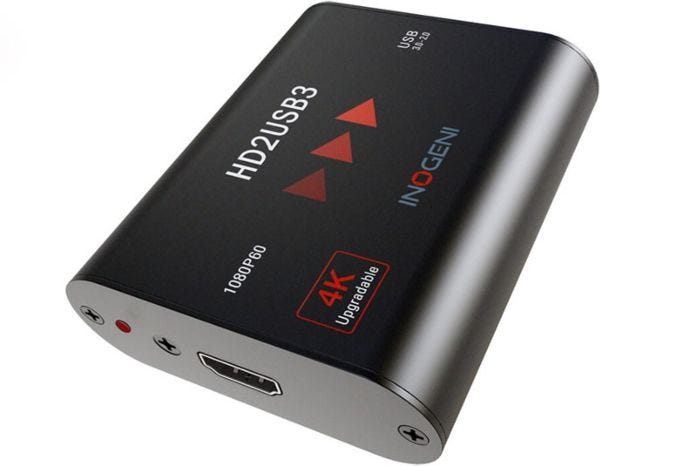

INOGENI HD to USB 3.0 Converter
The INOGENI HD to USB 3.0 Converter is the most easy and reliable tool to capture uncompressed video with audio from your camera's HDMI output for your PC for recording, editing, videoconferencing and streaming applications. No drive installation is necessary and it will work on all motherboards and USB 3.0 chipsets. It features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1080p60, and most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software.
The converter supports all resolutions up to 1080p resolutions at 60 fps. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The embedded audio in your HDMI signals are extracted and output as two-channel LPCM. A USB 3.0 cable comes included.
Key Features:
- HDMI capture to USB 3.0
- Field upgradable to 4K at minimal fee ($95)
- Supports 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Up to 1080p at 60 fps
- HDMI audio support
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Image controls: Brightness, contrast, saturation and hue settings.
- Powered from USB 3.0 port
- Dimensions: 3.2” x 2.9” x 0.75”
- Weight: 120g.
- Customizable video processing functions
- Supports multiple devices on the same PC
- Compatible with Windows, OSX, Linux and Android
| Model | INO-HD2USB3 |
|---|---|
| INPUT | |
| Connector | 1 x HDMI 1.4a |
| Video Resolutions | 1080p, 1440p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, Custom format on request |
| Frame Rates | 60, 50, 30, 29.97, 25, 24, 23.98 Hz |
| Colour Space | RGB, YCbCr, 4:4:4, and 4:2:2 |
| Sampling Rate | 297 MHz |
| Audio | Ch 1&2 48kHz LPCM Inogeni will not decrypt BD/DVD movies,satellite/cable receivers or other encrypted sources |
| OUTPUT | |
| Connector | 1 x USB 3.0 |
| Colour Space | YCbCr (YUY2) 4:2:2 8-bit |
| Video Scaler | Automatic hardware based |
| Colour Space Conversion | Automatic hardware based |
| Sampling Conversion | Automatic hardware based |
| Frame Rate Conversion | Automatic hardware based |
| Audio | 2-channel LPCM audio from HDMI |
| Operating System | NO driver installation necessary. Windows 7 and above (32/64-bit) OSX (10.10 and above) Linux (kernel v2.6.38 and above) Android |
| Host Requirements | USB 3.0 port |
| Cameras & Sources supported | All HDMI sources (with no video encryption) |
| Software Compatibility | UVC-compliant Runs with all software compatible to DirectShow, V4L2, QuickTime and AVFoundation. |
| Dimensions & Weight | 3.2” x 2.9” x 0.75” - 120g |
| USB 3Power | 5V, 580 mA |
