INOGENI 4K HDMI Capture to USB 3.0 Converter
Availability:In stock
Cat No.
22762
SKU
INO-4K2USB3
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£478.80
£399.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

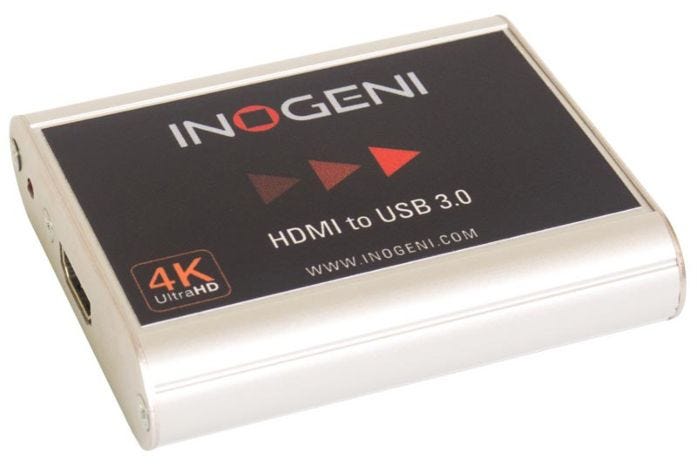

INOGENI 4K HDMI Capture to USB 3.0 Converter
The INOGENI 4K HDMI to USB 3.0 Converter is the most easy and reliable tool to capture uncompressed video with audio from your camera's HDMI output for your PC for recording, editing, video conferencing and streaming applications. No driver installation is necessary and will work on all motherboards and USB 3.0 chipsets. It features a single HDMI input / USB 3.0 output, supports SD and HDTV video formats up to Ultra HD 4K (4096x2160) and most computer graphic formats.
Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software.
The converter supports Ultra HD resolutions up to 30 fps and 1080p resolutions up to 60 fps.
All SD and HD resolution signals are converted to 4:2:2 8-bit or 4:2:0 12-bit colour spaces over USB 3.0, while all UHD resolution signals are converted to 4:2:0. The embedded audio in your HDMI signals are extracted and output as two-channel LPCM. A USB 3.0 cable is included.
- 4K HDMI Capture to USB 3.0
- Supports 4K, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
- Outputs 4:2:0 pixel format to reduce USB 3.0 bandwidth
- HDMI audio support
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD upscaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings. These controls do not work when we have a 4K input.
- Supports multiple devices on the same PC
- Powered from USB 3.0 port
- Compatible with Windows, OSX, Linux and Android
This product includes:
- 4K HDMI Capture to USB 3.0
- USB 3.0 Cable
- User Guide
| Input Connector |
1 x HDMI 1.4a |
|---|---|
| Video Resolutions |
4K UHD (3840/4096x2160),1440p, 1080p, 720p, 1080i,480p, 576p, 1920x1200,1280x1024, 1280x960,1024x768, 800x600, 640x480 |
| Frame Rates | 60, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max |
| Colour Space | RGB, YCbCr, 4:4:4, and 4:2:2(4K=RGB) |
| Sampling Rate | 297 MHz |
| Embedded Audio | Ch 1&2 48kHz LPCM |
| HDCP Copy Protection - YES | Inogeni will not decrypt BD/DVD movies,satellite/cable receivers or other encrypted sources. |
| Output Connector |
1 x USB 3.0 |
| Colour Space | YCbCr (YUY2) 4:2:2 8-bit, NV12 4:2:0 8-bit(UHD), YV12 4:2:0 8-bit(UHD), I420 4:2:0 8-bit (UHD) |
| Video Scaler | Automatic hardware based |
| Colour Space Conversion | Automatic hardware based |
| Sampling Conversion | Automatic hardware based |
| Frame Rate Conversion | Automatic hardware based |
| Audio | 2-channel LPCM audio from HDMI |
| Compatibilty Operating System |
NO driver installation necessary. Windows 7/8/8.1 (32/64-bit) OSX (10.10 and above) Linux (kernel v2.6.38 and above) |
| Android Host Requirements |
USB 3.0 port |
| Motherboard | Compatible with all motherboards Intel, Renesas, ASMedia, and Fresco Logic |
| Cameras Supported | Cameras and camcorders with an HDMI output |
| Video Conferencing | Skype Lync Hangouts Zoom FaceTime Vidyo LiveCast Jabber BlueJeans TeamViewer GoToMeeting Webex |
| Recording | VLC VirtualDub VideoGlide QuickTime qV4L2 MEncoder LUVCView GUVCView MATLAB VIDBlaster OBS Elements Debut Camtasia Wirecast FFmpeg ALE gstreamer Edius ScreenFlow LabVIEW vMix |
| Streaming | Youtube vMix xSplit OBS Wirecast Livestream USTREAM Presentations 2Go LiveCast |
