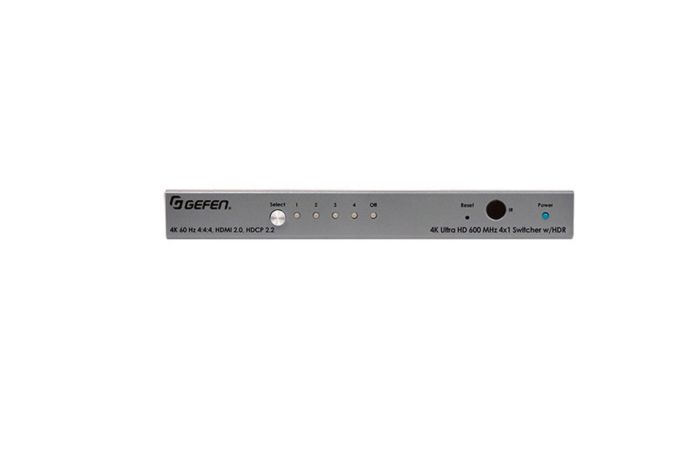

Gefen EXT-UHD600-41 4K Ultra HD 600 MHz 4x1 Switcher

Gefen EXT-UHD600-41 4K Ultra HD 600 MHz 4x1 Switcher

Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. The Gefen EXT-UHD600-41 Switcher routes the signal from up to four 4K sources to a single 4K display or video zone.

The switcher features a low profile, compact, and surface-mountable enclosure that can fit in tight places. It also accommodates Gefen locking HDMI cables for secure connections.

Gefen's Ultra HD 600MHz Series 4x1 switcher takes HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support.

They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling colour.

This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity.

Gefen's Ultra HD 600MHz Series creates a seamless bridge between the digital media of yesterday, today, and tomorrow. Supporting the digital rights management standard for Ultra High Definition content, HDCP 2.2, as well as the legacy HDCP 1.4, Gefen's Ultra HD 600MHz Series of products can handle the signal routing needs for both existing and new digital AV components in commercial AV systems.

The Ultra HD 600MHz Series supports stereo and multichannel digital audio including 7.1 channels of LPCM as well as the highest performance HBR (High Bit Rate) digital audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master.

These splitters have been specifically designed to support multiple layers of cascading for flawless performance in large video distribution and signage applications, supporting up to hundreds of displays.

Gefen's Ultra HD 600MHz Series was designed to work with Gefen's Syner-G™ software suite. EDID and HDCP management, status monitoring, and firmware updates can be done in minutes using the Gefen Syner-G software.

• Routes up to four Ultra Hi-Def sources to one Ultra HD display
• Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920x1200 (WUXGA)
• Supports HDCP 2.2 and 1.4
• Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
• Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
• 3DTV pass-through
• Lip Sync pass-through
• Advanced EDID and HDCP Management via Web Server Interface for rapid integration of sources and display
• Supports uncompressed LPCM digital audio up to 7.1 channels
• Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
• Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA), with HDMI-to-DVI adapters (not included)
• Configurable Automatic Input Switching selects the most recent connected or powered-up source
• Front Panel Pushbutton Input Selector routes one of the 4 connected sources to the display, or “Blocks” (turns off) the input
• RS-232 Serial interface for use with an automation control system
• IP control via Telnet, UDP, and the built-in web server interface
• IR remote control
• Small surface-mountable IR Extender module allows the switcher to be hidden away behind the display or in the equipment closet
• Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration
• In-field firmware update via Web Server Interface
• Long Reach Power (LRP) provides 500 mA at 5V on pin 18 of HDMI output. Enables select extender devices to be powered through their HDMI input port
• Locking power connector ensures reliable operation
• Low-profile, surface-mountable enclosure can be surface mounted, placed on a shelf, or hidden away behind the display
