Combines several converters for the price of one all in a robust aluminium case with easy to use LCD and button control system.

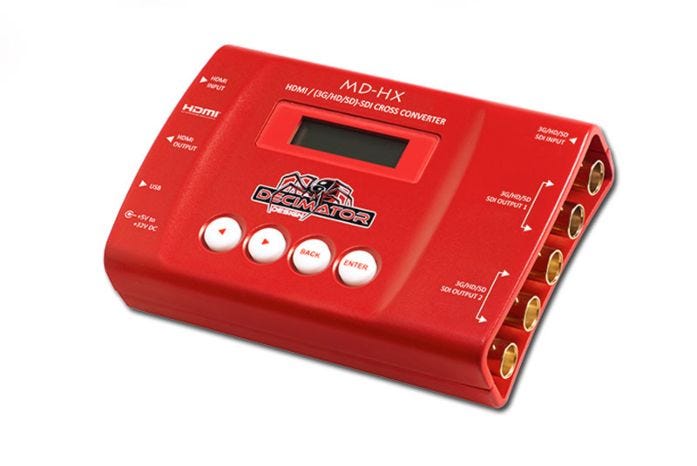

Combining capabilities usually reserved for a computer controlled converter the DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The MD-HX features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard.

The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.

Note: Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, as well as the ability to set the SDI output to 3G level A or B and convert between A and B. It also enables horizontal and vertical image flipping via the built-in scaler.

14 Conversion Modes:

• 1. SDI In to HDMI and SDI Out
• 2. SDI In to SDI Out and HDMI In to HDMI Out
• 3. SDI In to SDI Out and Scaled SDI In to HDMI Out
• 4. SDI In to SDI Out and Scaled HDMI In to HDMI Out
• 5. HDMI In to SDI Out and SDI In to HDMI Out
• 6. HDMI In to HDMI and SDI Out
• 7. HDMI In to SDI Out and Scaled SDI In to HDMI Out
• 8. HDMI In to SDI Out and Scaled HDMI In to HDMI Out
• 9. Scaled SDI In to SDI Out and SDI In to HDMI Out
• 10. Scaled SDI In to SDI Out and HDMI In to HDMI Out
• 11. Scaled SDI In to HDMI and SDI Out
• 12. Scaled HDMI In to SDI Out and SDI In to HDMI Out
• 13. Scaled HDMI In to SDI Out and HDMI In to HDMI Out
• 14. Scaled HDMI In to HDMI and SDI Out

HDMI to SDI / SDI to HDMI
The HDMI or SDI input can be scaled and/or frame rate converted to the required standard.

• Four SD/HD/3G-SDI outputs allow the converter to be used as a 1 to 4 distribution amplifier. SDI output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
• The MD-HX incorporates an LCD and button control system. This gives you access to features that have usually require a computer. Adjusting DIP switches or having access to a computer to change a simple setting are no needed with the MD-HX.
• The audio pairs in the SDI and HDMI outputs can be rearranged as required.
• The unit incorporates a USB port for control and firmware updates.

Key Features:

• HDMI & 3G-SDI Input
• Converts HDMI to SDI & SDI to HDMI
• Upscales/Downscales, Converts Frame Rate
• HDMI, 2 x SDI Loop Through & 2 x SDI Out
• 14 Different Conversion Modes
• LCD Info Screen with Button Controls
• Threaded Locking Power Connector
