Decimator Design MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer
Availability:In stock
Cat No.
27901
SKU
DD-MC-QUAD
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£354.00
£295.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

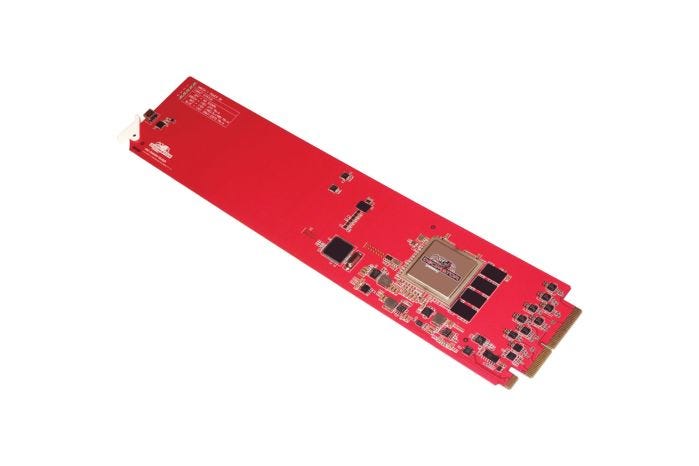

Decimator Design MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer
4-Channel 3G-SDI Multiviewer from Decimator Design
The MC-DMON-QUAD from Decimator Design is a 4-Channel 3G-SDI Multiviewer and supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B. It features custom Layouts with various standard layouts and 16 Character UMD overlay per window with individual enables, custom positioning and size.
Key Features:
- 4 x 3G-SDI Inputs / Up to 1080p60 Video
- 1-to-4 Multiviewer / 4-to-1 Multiplexer
- Mix Video Formats / Aspect Ratios
- 8-Channel Audio Metering
- Custom Layouts and Overlay Positioning
- UMD and Tallies via RS-422/485
- Frame Buffer for Unsynchronized Sources
- Supports openGear DashBoard for Control
- Updatable Firmware
- Requires DR1-10B1G Rear for Connectivity
- 4 x 3G-SDI Inputs / Up to 1080p60 Video
- 1-to-4 Multiviewer / 4-to-1 Multiplexer
- Mix Video Formats / Aspect Ratios
- 8-Channel Audio Metering
- Custom Layouts and Overlay Positioning
- UMD and Tallies via RS-422/485
- Frame Buffer for Unsynchronized Sources
- Supports openGear DashBoard for Control
- Updatable Firmware
- Requires DR1-10B1G Rear for Connectivity
This product includes:
- 1 x Decimator Design MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer
| SDI Input & Output Formats |
|
|---|---|
| LED Status | Power / Update 4 x Signal lock and rate |
| Inputs | 4 x (3G/HD/SD)-SDI USB Mini B for control and updates 3-pin connector for UMD and Tallies via RS422/485 |
| Outputs | 1 x SDI (3G/HD/SD)-SD |
| Power | TBA |
