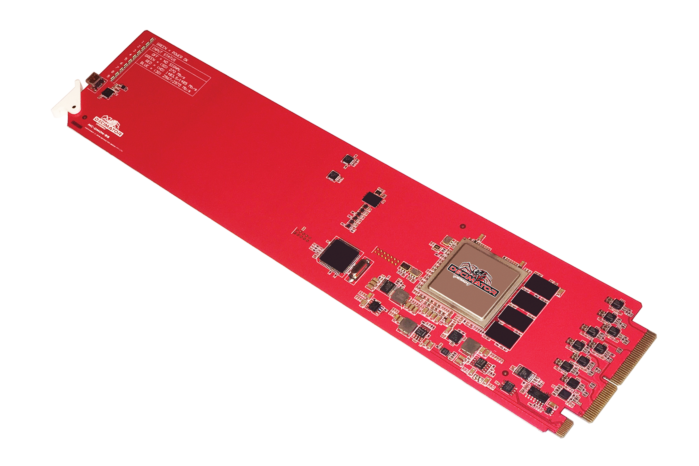

Decimator Design MC-DMON-9S 9 Channel SDI MultiViewer
The Decimator Design MC-DMON-9S is a 1 to 9 Channel openGear (3G/HD/SD)-SDI Multiviewer with SDI Output and Custom Layouts.
It features the ability to use, load and restore custom layouts, along with the standard layouts. This Multiviewer has 9 3G/HD/SD-SDI inputs, with auto detection, in total there is 26 formats supported. Along with the nine inputs, it has an integrated pass-through mode, which allows you to select any of the 9 inputs, and route them to the 3G/HD/SD - SDI output.
- Supports both 3G level A and B on the input and output.
- Allowing conversion between 3G level A and B.
- Low cost miniature (3G/HD/SD)-SDI 1 to 9 channel Multi-Viewer or 9 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables custom positioning and size
- 16 Channel Audio Metering overlay per window with individual enables custom positioning and size
- Format Status overlay per window with individual enables, custom positioning and size
- Safe Action and Safe Title overlay per window with individual enables and adjustment
- Centre Cross overlay per window with individual enable/disable toggle
- Audio ID overlay
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- 9 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- 1 x (3G/HD/SD)-SDI output
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Pass-Through mode allowing any of the 9 inputs to be selected and routed to the (3G/HD/SD)-SDI output
- USB port for control and firmware updates
- openGear DashBoard for control
Key Features:
- openGear DashBoard for control
- Load and restore Custom Layouts
- Supports both 3G level A and B on the input and output
- Integrated Pass-Through mode
- Fast switching between inputs
- openGear DashBoard for control
- Load and restore Custom Layouts
- Supports both 3G level A and B on the input and output
- Intergrated Pass-Through mode
- Fast switching between inputs
- Decimator Design 9 Channel SDI MultiViewer
| SDI Input & Output Formats | 3G:SMPTE 424M@2.97 and 2.967Gb/s
|
|---|---|
| LED Status |
|
| Inputs |
|
| Outputs |
|
