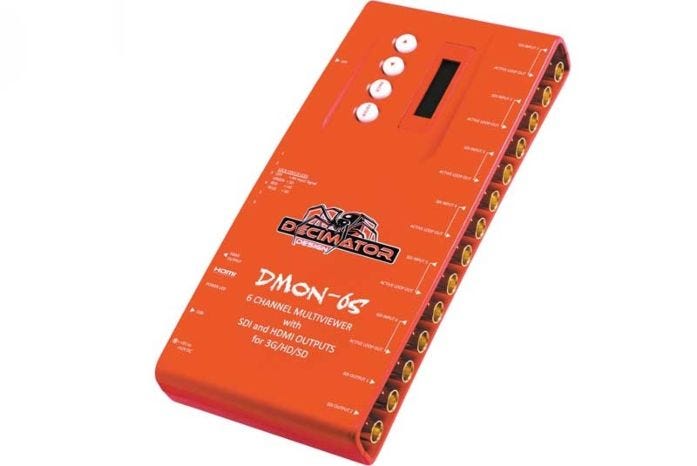

Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer 6 x (3G/HD/SD)-SDI active loop copies of each input.
The DMON-6S is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
This unit also includes:
32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
USB port for control and firmware updates
Heavy duty metal box
Metal Thread Locking DC Power Socket
Power Supply, HDMI Cable and USB Cable
SDI Input & Output | |
---|---|
Formats | |
3G | SMPTE 424M@2.97 and 2.967Gb/s 1080p@60/59.94/50Hz |
HD | SMPTE 292M/274M/296M@1.485 and 1.435Gb/s 1080i@60/59.94/50Hz 1080p/psf@30/29.97/25/24/23.98Hz 720p@60/59.94/50/30/29.97/25/24/23.98Hz |
SD | SMPTE 259M@270Mb/s 625i50 525i59.94 |
HDMI Output Formats | 1080p@60/59.94/50Hz 1080i@60/59.94/50Hz 1080p@30/29.97/25/24/23.98Hz 720p@60/59.94/50/30/29.97/25 625i50 / 525i59.94 |
LED Status | Power 6 x Signal lock and rate |
Power | +5V to +32V DC Positive Centre Pin |
LCD / Button Menu Options | HDMI output type Output Select Multi-Viewer Output Format Multi-Viewer Number of Windows Multi-Viewer Layout Multi-Viewer Audio Source Multi-Viewer Reference Full Screen is Scaled Input Routing GPI mode Setup |
Inputs | 6 x (3G/HD/SD)-SDI Input Equalization > 100M using Belden 1694A USB for control and updates |
Outputs | 6 x SDI (3G/HD/SD)-SDI Active Loop-throughs 2 x SDI (3G/HD/SD)-SDI HDMI Type A |
Dimensions | 220mm x 103.7mm x 29.5mm (8.7” x 4.1” x 1.2”) |
