Decimator Design DMON-16SL 16 Channel Multiviewer HDMI
Availability:In stock
Cat No.
14974
SKU
DD-16SL
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£900.00
£750.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

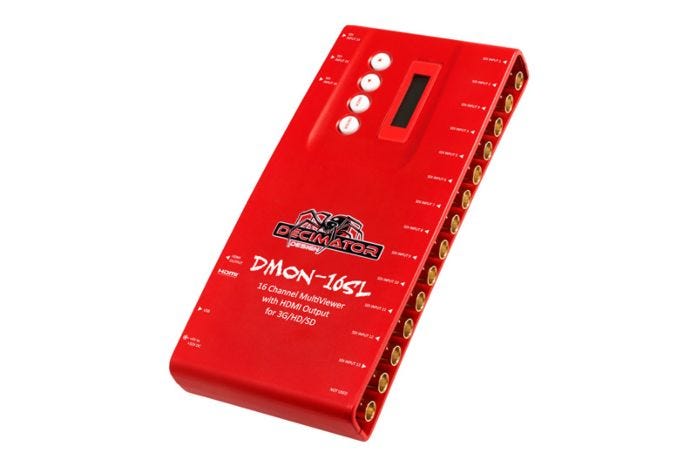

Decimator Design DMON-16SL 16 Channel Multiviewer HDMI
1 to 16 channel multiviewer with HDMI output for 3G/HD/SD and custom layouts.
The DMON-16SL from Decimator Design (a "Lite" version of the 16S) is a low cost, miniature 16 to 1 Multiviewer. The 16 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds. Select from preset layouts or customise your own, depending on the number of feeds you wish to monitor. The Decimator DMON-16SL multiviewer allows you to:
- Monitor between 1 and 16 independent 3G/HD/SD-SDI feeds
- Select your output format over HDMI
- Select your output format in both Full-Screen and Multi-Viewer mode
- Fully customise your layouts with the ability to save & load
- Fixed Identifier overlay per window with individual enables, custom positioning and size
- Audio ID overlay
- Fast switching between inputs using Full-Screen scaling
- Low latency buffering for each input allowing non-synchronous inputs
- Each window is independent of the others with variable aspect ratios per window
- Auto Detect & display any format of any frame rate simultaneously
- Select any of the 16 inputs for pass-through to the HDMI output
- Control from a distance via USB on a Mac/PC app
- Control on-unit using the buttons and LCD screen
- Toggle one feed to fullscreen
DMON-16SL comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.
- Monitor between 1 and 16 independent 3G/HD/SD-SDI feeds
- Select your output format over HDMI
- Select your output format in both Full-Screen and Multi-Viewer mode
- Fully customise your layouts with the ability to save & load
- Decimator Design DMON-16SL 16 Channel Multiviewer HDMI
