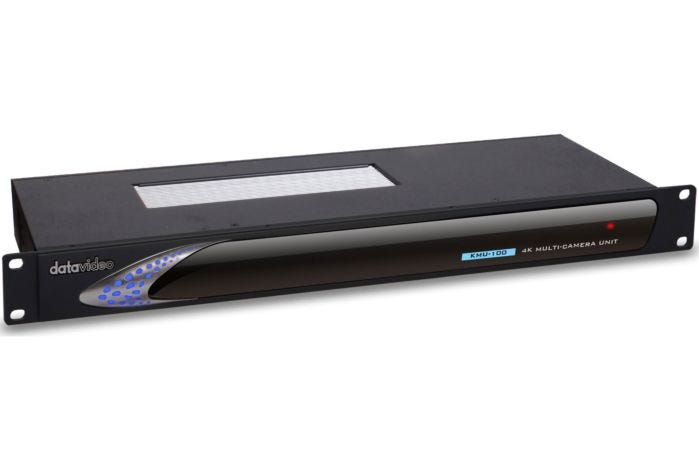

Datavideo KMU-100 4K Multicamera Processor
A unique 4K multi-camera production solution
Datavideo’s all new KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation. The basic concept is straightforward: The output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16x9 user-defined cropped windows that are sent out as four separate HD signals through HD-SDI
These user defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal. An additional 4K camera could be connected to allow up to eight defined outputs from the two 4K signals. As an option, the Datavideo RMC-180 camera controller can be added to easily pan, tilt, and zoom to create the user defined windows on the 4K signal. You can set up these shots in advance and save them as presets, or you can do it in real-time.
Key Features:
- Delivers multiple virtual full HD (up to 1080p) scaled camera angles
- An additional 4K camera could be connected to allow up to eight defined outputs
- Quad SDI, 6G-SDI or 12G-SDI Inputs
- 8x 3G-SDI Output
- Delivers multiple virtual full HD (up to 1080p) scaled camera angles
- An additional 4K camera could be connected to allow up to eight defined outputs
- Quad SDI, 6G-SDI or 12G-SDI Inputs
- 8x 3G-SDI Output
- 1x KMU-100 Main Unit
- 1x AD Switch DC 12V with AC Cord
- 4x Screw
- 1x Thank You Card
Video Inputs:
- Quad SDI, 6G-SDI or 12G-SDI
- HDMI 2.0 Video Input with Support for 2160p60
- Display Port Video Input with Support for 2160p60
SDI Video Output:
- 8x 3G-SDI
Monitoring:
- 2x HDMI 1.4
Audio:
- SDI Audio Input (16 Channels)
- SDI Audio Output (16 Channels)
Sync Input (Genlock):
- Blackburst or TriSync
Computer Interface:
- Ethernet RJ45 for Control Configuration and Updates (for Laptop)
- RS-232 / RS-422 x 1
