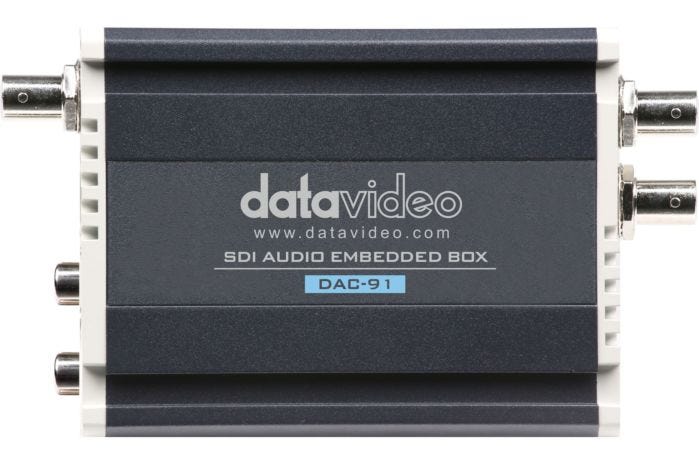

Datavideo DAC-91 Audio Embedder
An embedded audio box that allows users to embed 2 channels of analogue audio into SDI video signal
The DAC-91 is an embedded audio box with useful functions that allow users to embed 2 channels of analogue audio into SDI video signal.
It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.
The Audio box also has audio level adjustment by using the built-in DIP switches.
Key Features:
- Embed Audio into an SDI Signal
- Automatically detects 3G, HD, SD signal
- 4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
- Audio level indicator display
- Audio level adjustment
- Control via DIP Switches
- Embed Audio into an SDI Signal
- Automatically detects 3G, HD, SD signal
- 4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
- Audio level indicator display
- Audio level adjustment
- Control via DIP Switches
- 1x DAC-91
- 1x AD Switch DC 12V
- 2x Mini XLR to female XLR cable
- 1x Thank You Card
| SDI Video Input | 3G/HD/SD SDI x1 |
|---|---|
| SDI Video Output | 3G/HD/SD SDI x2 |
| Analog Audio Input | Mini XLR (balanced) x2, RCA (unbalanced) x2 * Mini XLR1 & RCA1 mixed to CH1 * Mini XLR2 & RCA2 mixed to CH2 |
| Analog Audio Output | N/A |
| Indicator | Power LED x1 Audio Level LED: 2 rows |
| Updates and Configuration | Mini USB x1 |
| Audio Format Selection | SMPTE, EBU |
| Gain | Yes |
