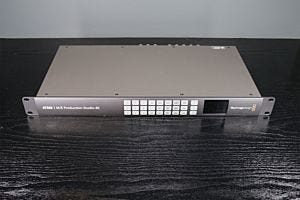

Blackmagic Design ATEM 1 M/E Production Studio 4K

Availability:In stock
Cat No.
Blackmagic Design

Order Now - Usually available to despatch in 3-5 days

£2,604.00 £2,170.00
- +
  • Free UK Delivery

    Free UK Delivery

    On orders over £250

  • Price Match

    Price Match

    Request here

Product Information

ATEM 1 M/E Production Studio 4K


Create stunning multi camera live production with the world's most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders and computers.

You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The advanced ATEM 1 M/E Production Studio 4K features extra inputs, full motion DVE, stinger transitions, larger media pool with full motion clips and 3 auxiliary outputs.

Take your live production beyond broadcast quality! ATEM Production Studio 4K has all the features you need for the most innovative live concerts, sporting events, theatre productions, conferences and more! When you're doing live events with super large high resolution screens, then simply switch your ATEM Production Studio 4K to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution.

Powerful Software and Hardware Control
ATEM live production switchers have the widest range of control options. You get full switcher control from any laptop or desktop computer with the included ATEM software control panel for both Mac and Windows. For demanding live production environments you can add a hardware based ATEM 1 M/E or 2 M/E Broadcast Panel featuring the highest quality buttons, knobs and faders for even faster switching. You also get an SDK for custom control. Only ATEM gives you such a wide range of control options!

ATEM Production Studio includes advanced 6G-SDI and HDMI 4K inputs that are SD, HD or Ultra HD switchable so you can connect to virtually anything! Every input supports embedded audio mixing and features a frame resynchronizer so you can use sources without genlock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations! You also get 2 balanced XLR audio inputs for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod®.

Get all the outputs you need to record your video master and to broadcast your program to the audience at the event! ATEM includes program and down converted program outputs plus auxiliary outputs allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks! The multi view outputs are 1080i HD so you can use any TV or monitor. You also get a balanced XLR output of your audio mix, which is also embedded into all video outputs.

Multi View Monitoring
ATEM's built in multi view lets you monitor the switcher's video inputs on a single SDI monitor or regular HDMI TV! Multi view outputs in regular 1080i HD, so even if your broadcast is in SD or Ultra HD you can still use a standard TV for monitoring! You can customize the multi view layout and also add custom labels. Multi view makes it easy to watch your program, preview, and 8 live sources all simultaneously on a single monitor. Multi view means you get a true portable solution.

Creative Transitions
ATEM includes a huge range of real time high quality transitions that are available in all SD, HD or Ultra HD resolutions! Use mixes, dips, wipes and more for amazing broadcast quality live switching! Every transition is instantly available and you get full control of the transition type, pattern, length and other attributes. Create a customized 'on air' looks using the large choice of wipe patterns. The ATEM 1 M/E Production Studio 4K also includes animated stingers and DVE transitions!

Digital Video Effects
The advanced 1 M/E Production Studio 4K model includes a powerful digital video effects processor. Use this amazing high quality DVE to position, resize, rotate and scale live video all in real time. Create professional picture-in-picture effects with customizable 3D borders, shadows and lighting. Add dynamic DVE transitions to your production with squeeze, push, swoosh and spin effects that displace your live video revealing the next source. You can even use the DVE for graphic wipe transitions!

Key Features

  • Full live production switcher with media players, chroma keying, transitions and more.
  • Switcher can be selected between SD, HD and Ultra HD video formats instantly.
  • Built in multi view lets you see 8 sources, preview and program on an HD-SDI and HDMI output.
  • 10 Inputs total with 10 6G-SDI and 1 HDMI inputs. All inputs feature auto re-sync.
  • 2 6G-SDI program outputs, 1 HDMI 4K program out and 1 down converted HD-SDI program output.
  • Built in media pool graphics storage for 32 RGBA Ultra HD stills and 180 frame Ultra HD clips.
  • Built in full motion 2D DVE with position, scale, resize and rotate features.
  • 2 media players allow graphics to be connected to keyers for fill and key layering.
  • Transitions include cut, mix, dip to colour, SMPTE wipes and more.
  • 4 upstream keyers include chroma keyer and 2 downstream keyers are included.
  • 3 auxiliary outputs include front panel aux switching buttons and LCD screen for viewing.
  • Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs.
  • Balanced XLR stereo analog audio inputs and 1 HiFi RCA stereo audio inputs into built in audio mixer.
  • Audio mixer is output onto balanced XLR audio outputs and on all video outputs.
  • Internal sources include black, colour bars, two colour generators and media pool.
  • Ethernet connection for control panel connection. Mac and Windows control panel software included.
  • Compatible with all ATEM Broadcast Panel control panels when hardware panel is required.
  • Black Burst and HD-Tri-Sync genlock input.
  • Compact 1 rack unit size for a portable solution.
  • Full live production switcher with media players, chroma keying, transitions and more.
  • Switcher can be selected between SD, HD and Ultra HD video formats instantly.
  • Built in multi view lets you see 8 sources, preview and program on an HD-SDI and HDMI output.
  • 10 Inputs total with 10 6G-SDI and 1 HDMI inputs. All inputs feature auto re-sync.

This product includes:

  • ATEM 1 M/E Production Studio 4K
  • SD card with software and manual

 Total Video Input 10
 Total Video Output 8
 SDI Video Input 10 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
 HDMI Video Input 1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
 Analog Audio Output 2 x XLR.
 SDI Audio Output 2 Ch embedded into SDI output on all outputs.
 Audio Input 2 x XLR. 2 x RCA.
 Sync Input Tri-Sync or Black burst.
 Internal Frame Synchronizers 10. All inputs.
 SDI Program Output 2 x 10-bit SD/HD/Ultra HD 4K switchable.
 HDMI Program Output 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
 Down Converted SDI Program Output 1 x 10-bit (Ultra HD 4K to HD)
 SDI Preview Output 1 x 10-bit SD/HD/Ultra HD 4K switchable.
 SDI Aux. Output 3 x 10-bit SD/HD/Ultra HD 4K switchable.
 Quantity of Multi Views 2
 Multi View Outputs 1 x SDI and 1 x HDMI.
 Control Panel Connections Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
 Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
 Computer Interface 1 x USB 2.0 port.
 SD Format Support 525/29.97 NTSC 4:3, 16:9, 625/25 PAL 4:3, 16:9
 HD Format Support 720p50, 59.94
 1080p23.98, 24, 25, 29.97, 50, 59.94
 1080i50, 59.94
 Ultra HD Format Support 2160p23.98, 24, 25, 29.97
 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 424M.
 Video Sampling 4:2:2.
 Colour Precision 10-bit
 Colour Space REC 601, REC 709, REC 2020.
 HDMI Input Resolutions for Computers  720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 50Hz, 1920 x 1080 59.94Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.
 Control Panel Included ATEM Software Control Panel included free for Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit.
 Software Updates Using USB 2.0 connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
 Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
 Colourspace Conversion Hardware based real time.
 Processing Delay < 2 Lines.
 Audio Mixer 12 input x 2 channel mixer.
 Selectable On/Off/Audio-Follow-Video.
 Level and Peak metering.
 Master gain control.
 Analog outputs may be used for separate monitoring.
 4K to HD Down Conversion Yes, program x 1.
 Operating Systems
 Mac OS X 10.10 Yosemite,
 Mac OS X 10.11 El Capitan or later.
 Windows 8.1 64-bit or
 Windows 10 64-bit.

 Product Specifics
 Total Number of Layers 8
 Upstream Keyers 4
 Downstream Keyers 2
 Linear/Luma Keyers 7
 Chroma Keyers 4
 Pattern Generators 7
 Colour Generators 2
 Transition Keyer (Stinger/DVE) 1 and 1
 DVE with 3D Borders & Drop Shadow 1
 Control Panel Compatibility ATEM 1 M/E Broadcast Panel preferred. Compatible with ATEM 2 M/E Broadcast Panel. Includes ATEM Software Control Panel.
 Interface Minimum monitor resolution of 1366 x 768.
 Front Panel Built in LCD monitor for video and 27 LED buttons for Aux switching.
 Media Player
 Media Players 2
 Channels Fill and key for each Media Player.
 Media Pool Still Image Capacity 32 with fill and key.
 Media Pool Clip Capacity 2 with fill and key.
 Maximum Clip Length in
Ultra HD 4K
 180 frames
 Maximum Clip Length in 1080 720 frames.
 Maximum Clip Length in 720p 1600 frames.
 Maximum Clip Length in NTSC/PAL 3600 frames.
 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
 Media Pool Video File Format TGA Sequence.
 Media Pool Audio File Format WAV, MP3 and AIFF.
 Multi View Monitoring
 Number of Windows 1 x 10
 Routable Windows 8
 Tally Red for program and green for preview indication.
 Windows Source Labels Yes
 Physical Installation
 Physical Installation 1 Rack Unit Size.

 Power Requirements
 Power Usage 100 W
 Power Supply 1 x built in international AC power supply. 110-240V AC.
 Physical Specifications
 Width 482 mm
 Height 44 mm
 Depth 235 mm
 Weight 2.600 kg
 Environmental Specifications
 Operating Temperature 0° to 40° C (32° to 104° F)
 Storage Temperature -20° to 60° C (-4° to 140° F)
 Relative Humidity 0% to 90% non-condensing

 What's Included
 ATEM 1 M/E Production Studio 4K
 SD card with software and manual

 12 month Limited Manufacturer's Warranty.
