Blackmagic ATEM 4 M/E Constellation HD

Availability:In stock
Cat No.
Blackmagic Design

5 in stock for Immediate Dispatch

£3,566.40 £2,972.00
- +
  • Free UK Delivery

    Free UK Delivery

    On orders over £250

  • Price Match

    Price Match

    Request here

Product Information

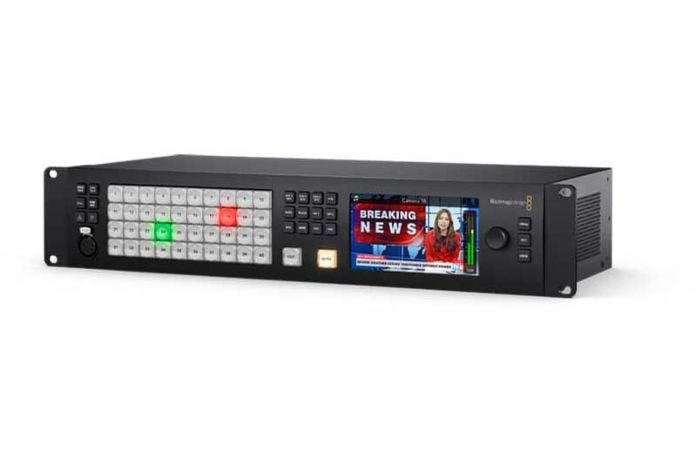

ATEM 4 M/E Constellation HD

The Blackmagic ATEM 4 M/E Constellation HD is one of the world's most powerful HD live production switchers! We have 3 incredibly powerful HD switchers available, including the ATEM 1 M/E Constellation HD model with 10 inputs, and the ATEM 2 M/E Constellation HD model with with 20 inputs! Plus each SDI input features a full standards converter!

ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma keyers, media players, multiviews, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input.

The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panel!

ATEM Constellation HD switchers feature a compact rack mount design with a built in control panel.

This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus.

The compact design is perfect for portable live production, with the rear of the switcher including the connections for 3G-SDI inputs, 3G-SDI aux outputs, balanced audio and Ethernet for control.

The top 4 M/E model even includes RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.

The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12 x DVEs in total.

With 3 powerful models, ATEM Constellation HD switchers are ideal for concerts and music festivals because you can place cameras on all areas of the stage for amazing coverage!

Even live sports benefit from the huge number of inputs and DVEs let you build multi-layer compositions to cover the action.

The fastest way to produce programming is live! With powerful internal graphics and lots of ATEM advanced chroma keyers, you get everything you need for complex program production.

ATEM Constellation is also perfect for house of worship programming as it’s big enough to allow professional results, but it’s very simple to learn so it’s easy to train a volunteer crew!

  • ATEM 4 M/E Constellation HD
  • Welcome wallet with QR code for software download
Total Video Inputs40
Total Video Outputs24
SDI Rate1.5G, 3G
Total Audio Inputs2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in. 1 x 5 pin XLR Talkback
Total Audio Outputs2 x balanced 1/4 inch Jack,
2 x 32 stereo channel BNC MADI out.
1 x 5 pin XLR Talkback
SDI Audio Inputs2 Ch embedded audio on all SDI inputs.
SDI Audio Outputs2 Ch embedded audio on all SDI outputs.
