Autocue 17" Pioneer Portable Teleprompter
Availability:In stock
Cat No.
52258
SKU
P7008-0902
Product Information

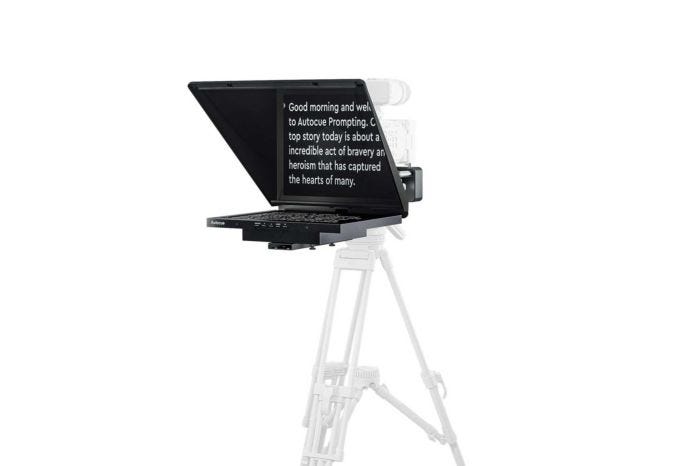

Autocue 17" Pioneer Portable Teleprompter
The Autocue 17” Pioneer Portable Teleprompter is designed for people on the move. The high spec monitor with a medium-sized hood gives you a studio style teleprompter that travels well and performs in every location. Its adjustable mounting kit makes sure that setup goes smoothly with simple tuning of the hood height so that the lens is always in the middle of the glass, and a counterweight is included to centre the load of the prompter on the camera support.
Pioneer Series packages include Autocue’s highest spec monitors with a brightness that will out-perform any lighting situation to keep your presenter on-script. Like all Autocue monitors they have a strong metal housing ready to take years of hard work. Autocue has selected a 17” monitor for this system because it’s a good size to transport and with around a 6m/20’ max reading range it’s big enough for most production spaces. With HD-SDI, CVBS, VGA, and HDMI inputs to choose from you can be sure the prompter will integrate whether you have a single PC or a full broadcast facility.
The Pioneer Series Portable Teleprompter has Autocue’s medium hood which allows for all but the widest angle lenses and packs more easily than its larger sibling. Formed from a lightweight composite, the hood holds Autocue 70:30 beamsplitter glass that clearly displays the text to the presenter while keeping it invisible to the camera. To protect your system on its travels Autocue recommends the Pioneer Portable Prompter Case (P7018-1850), with hard shell and helpful wheels.
Key Features
- Medium-sized studio style prompter that travels well
- Adjustable mounting kit makes it simple to position the lens
- High brightness monitor can be used in any indoor or outdoor light
- Ready to integrate with a choice of input options
- Optional accessories include hard travel case with wheels
- Medium-sized studio style prompter that travels well
- Adjustable mounting kit makes it simple to position the lens
- High brightness monitor can be used in any indoor or outdoor light
- Monitor
- PSU
- Mounting rail with bracket set
- Camera carriage
- Monitor spine
- Medium hood
- Beamsplitter glass
- 19mm rod set
- 5kg counterweight
- HDMI cable, 10m
- UK/EU or US IEC power cable
| Display Size | 17" |
|---|---|
| Aspect Ratio | 4:3 |
| Brightness | 1500Nits |
| Contrast | 1000:1 |
| Resolution | 1280x1024 |
| Connectivity | 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA |
| Image Flip | Horizontal and vertical |
| Input Voltage | 12V DC |
| Aux. Output | 12V DC, 3A max. |
| Power Consumption | 28W max |
| Power Supply | 110-240V AC 50/60Hz input, 12V DC, 5A max. output |
| Hood | Medium composite hood with collapsible fabric lens seal |
| Rail Fixings | 3/8"-16, with optional 1/4"-20 inserts |
| Camera Carriage | Camera fixings: 2x 3/8"-16, 1/4"-20, Rod fixing: 2x 19mm rod fixings (studio standard 104mm pitch) |
| Camera base to lens centre height supported | 50-140mm (2-5.5") |
| Monitor mounting | VESA100 with additional 3-8"-16 camera support fixings |
| Counterweight mounting rods | 2x 19mm dia. |
| Counterweight | 1x 5kg (11lbs) |
| Monitor Dimensions | 382 x 329 x 56mm (15 x 13 x 2.2") |
| Monitor Weight | 3.7kg (8.2lbs) |
| System Dimensions | 503 x 420 x 729mm (19.8 x 16.5 x 28.7") |
| System weight | 10.5kg (23.1lbs) [excluding counterweight] |
