AJA ROI DVI to SDI Mini-Converter

ROI DVI to SDI Mini-Converter

DVI to SDI Mini-Converter from AJA

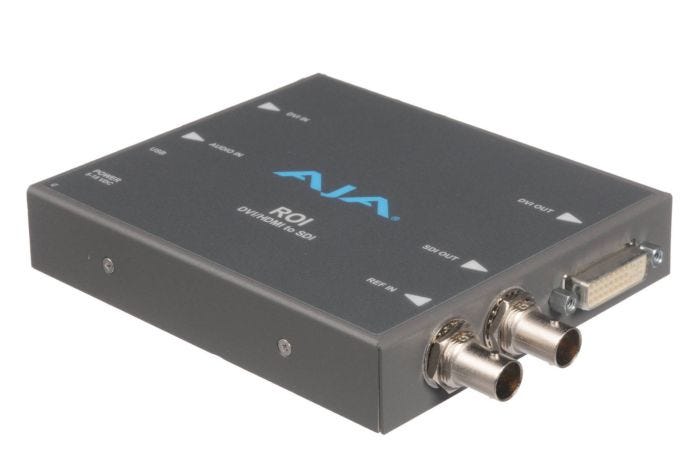

AJA's ROI DVI to SDI Mini-Converter converts a DVI signal to an SDI output, enabling you to use computer signals in digital video workflows. On an included MiniConfig software application compatible with Macs and PCs, you'll be able to select a Region of Interest from the input signal and assign how the region is scaled to the output. You can assign image scaling and extensive aspect ratio and frame rate conversions. The Converter syncs up to the MiniConfig application via a USB cable connection to the host computer. A USB cable and a universal power supply are also included.

A DVI loop through will allow you to monitor the input locally, and a reference input will let you genlock the SDI output. Both the DVI input and loop through support optional DVI-to-HDMI adapters, so you can convert HDMI to SDI and/or monitor your input on an HDMI display.

A 3.5mm TRS input supports 2 channels of analog audio, the SDI output supports 8 embedded channels at 24-bit, and the DVI input supports 8-channel, 24-bit HDMI embedded audio if you use a DVI-to-HDMI adapter.

Region of Interest
In an included MiniConfig software application, you'll be able to select a Region of Interest in an incoming DVI or HDMI signal and control how that region is scaled to the output resolution. This selection will let you eliminate extra interface clutter and menu bars and extract only the portion of the image you want.

Conversion
On-screen controls in the included MiniConfig software will let you manage aspect ratio and frame rate conversion. MiniConfig will show you exactly what your source and output will look like and what formats are coming in and going out.

Connectivity
The Converter features a DVI loop through enabling a connection to an external DVI monitor (or HDMI monitor via a DVI-to-HDMI adapter) while converting to SDI. A Reference input ensures the SDI output is genlocked for use throughout a production or facility.

Audio
The Converter accepts 2-channel audio from a 3.5mm analog audio input or embedded 8-channel audio from an HDMI input (DVI-to-HDMI adapter). The audio source and routing can be selected in the included MiniConfig software and is embedded in the SDI output, allowing computer audio to be embedded within the SDI signal for easy, synchronized routing.

Key Features:

• DVI to SDI Conversion
• DVI Loop Through for Monitoring
• HDMI Adapter Supported on Input & Loop
• Region of Interest Scaling
• Reference Input
• 3.5 mm TRS Analog Audio Input, 2-Ch
• HDMI Embedded Audio Input, 8-Ch
• SDI Embedded Audio Output, 2- or 8-Ch
• 24-Bit Digital Audio Input / Output
• Configures on Mac or PC via Included App
