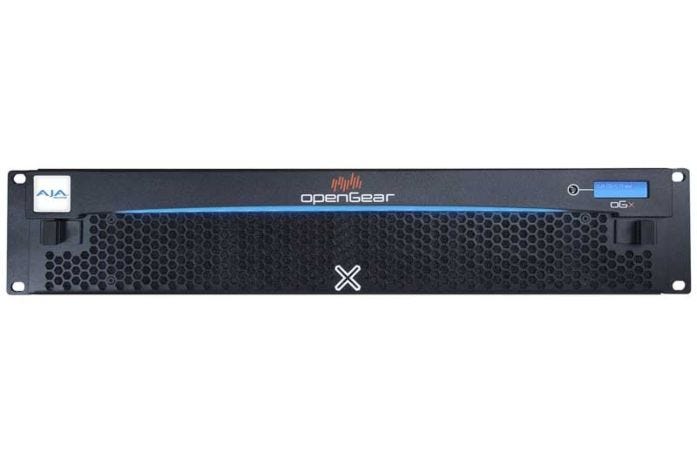

AJA openGear Rackmount Frame for 20 openGear Cards - 2 RU

Availability:In stock
Cat No.
40212
SKU
OG-X-FR
AJA

Not in stock - Usually Delivered >2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£2,295.60 £1,913.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

openGear-Compatible 20-Slot Rackframe - 2 RU

openGear is an open-architecture, modular frame system designed by Ross Video and supported by a diverse range of terminal equipment manufacturers, including AJA.

The AJA OG-X-FR is a 2RU high openGear frame which is compatible with any openGear card and offers Dashboard support for the latest AJA Dashboard compatible openGear cards. The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards.

Features:

  • 2RU frame with capacity for up to 20 openGear cards
  • 600 watt power supply with integral cooling, optional 2nd power supply
  • Front LCD display for name, IP address and fault identification
  • FrameGlow customized identification and alarming
  • Support for analog, digital, video, audio, SDI and IP modules in the same frame
  • Removable front door and air filter for easy fan servicing and maintenance
  • Standard DashBoard control system for setup, control and monitoring
  • Optional SNMP control and monitoring, and DataSafe card backup and restore
  • Includes preinstalled standard network card (MFC-8322-S)

Smart Control
One control system unites all openGear suppliers: DashBoard for setup, real-time control, monitoring, and tools for creating customized workflow through CustomPanels. The optional Advanced Networking controller from ROSS features DataSafe, which automatically saves and restores settings if a module is swapped.

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Download DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

Cooling
While many of AJA's openGear cards are energy-efficient, the high-density nature of rackmount cards can generate heat in a small space. Integrated fans in the OG-X-FR keep internal components operating at acceptable temperatures, leading to improved reliability and longer card life.

OG-X-FR offers more power and cooling for the most demanding UltraHD, 12G SDI & IP workloads.

Smart Power
OG-X-FR accommodates 2 front-loaded, hot-swappable power supplies. Each power supply contains an independent cooling fan, status LED, and a front mounted power switch.

Total system power of 600W
New high power mode allowing 23W per slot. OG-X-FR ships with a power supply included. When seeking redundancy for extra security in critical environments, order an additional OG-X-PS from your reseller.

  • Compatible with any openGear Card
  • Holds up to 20 openGear Cards
  • 600W Power Supply & Integral Cooling
  • Front LCD Display
General
Type Chassis
Width 19 in
Depth 17.7 in
Height 3.5 in
Weight 20 lbs
Studio & Production Equipment
Features 20 input/output module slots
Power
Nominal Voltage AC 120/230 V
Frequency 50/60 Hz
Max Power Consumption 500 W
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 90% (non-condensing)
