Product Information

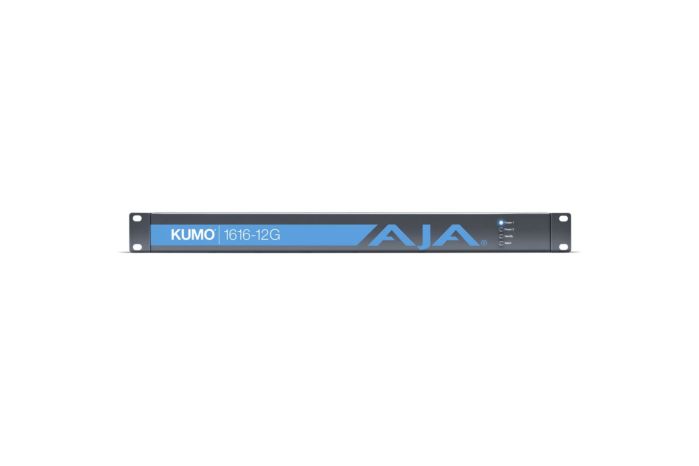

AJA KUMO 16x16 Compact 12G-SDI Router with 1 Power Supply
The 1 RU KUMO 1616 12G-SDI Compact Router from AJA is a 16 x 16 video matrix router. It is a small, cost-effective solution for a range of broadcast, production, and post-production applications.
This router features 16 SDI inputs and 16 SDI outputs. The KUMO 1616 12G has an embedded Linux operating system and internal Web server, which provide Web browser control via 10/100/1000 Ethernet with no need for additional software.
- Supports all ancillary data, including embedded audio
- Up to eight Salvos can be configured and saved in each KUMO router
- Reference via BNC, looping, black burst or tri-level sync
- 10/100/1000 Ethernet LAN
- AJA KUMO 1616 Compact 12G-SDI Router (1 RU)
- AC Adapter
- AC Power Cord
| Compatible Control Panels | AJA KUMO CP - 1 RU X-Y Ethernet control panel AJA KUMO CP2 - 2 RU X-Y Ethernet control panel |
||
|---|---|---|---|
|
Video Format |
270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s, 12 Gb/s SDI 270 Mb/s DVB-ASI Format agnostic, 125 Mb/s to 12 Gb/s |
||
|
Video Input Digital |
16 x 12G-SDI BNC ports, noninverting | ||
|
Cable Equalization |
Belden 1694A: 12 Gb/s, up to 196.9' / 60 m 6 Gb/s, up to 393.7' / 120 m 3 Gb/s, up to 623.4' / 190 m 1.5 Gb/s, up to 639.8' / 195 m 270 Mb/s, up to 1329' / 405 m Automatic operation |
||
|
Video Bandwidth |
SMPTE 259, 292, 424, 2081, and 2082 |
||
|
Reclocking |
270 Mb/s, 1483 Gb/s, 1485 Gb/s, 2967 Gb/s, 2970 Gb/s, 5934 Gb/s, 5940 Gb/s, 11.868 Gb/s, 11.880 Gb/s - auto select | ||
|
Reference Input |
2 x BNC ports, external | ||
|
Network Interface |
1 x RJ45, 10/100/1000 Ethernet | ||
|
USB Interface |
1 x Mini-USB for IP configuration | ||
|
Serial Interface |
1 x 9-pin sub-D female, RS-422 port |
||
|
Power Consumption |
13 W typical |
||
