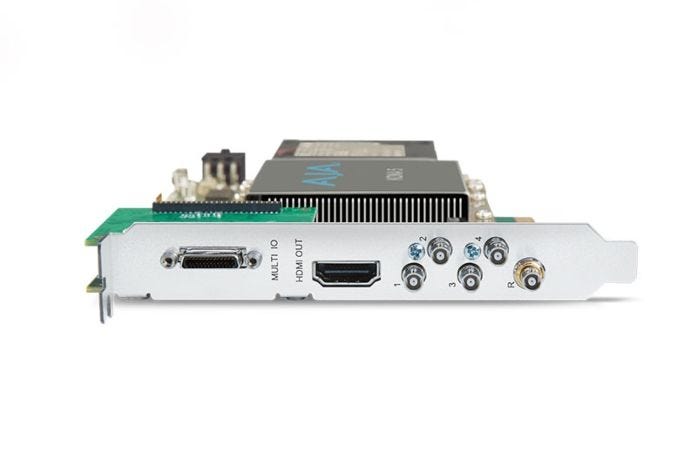

AJA Kona 5 12G-SDI I/O, 10-bit PCIe Card, HDMI 2.0 Output w/ HFR Support (PCIe power)
Take command of the most challenging projects using the immense power of the newest member of the KONA product line. KONA 5 is AJA’s blazingly fast, 8-lane PCIe 3.0 I/O card, designed for today’s most demanding video and audio workflows.
Whether you are working with HFR 4K/UltraHD, 2K/HD, SD, Deep Colour and/or HDR, experience the quality and peace of mind that KONA 5 brings to your world. Supporting 10-bit 4:2:2 and 4:4:4, or even 12-bit* colour spaces for pristine imagery, KONA 5 allows the flexibility to ingest and output with 12G/6G/3G-SDI and monitor with a full size HDMI 2.0 port. The bi-directional 12G-SDI ports provide immense flexibility for capture and simultaneous pass through, and with the appropriate software, multi-channel capture and streaming.
For HDR workflows, KONA 5 supports HDR 10 and HLG* for rich colour delivery over HDMI 2.0. KONA 5 has the power for the work you do today and into the future.
Professional Connectivity: 12G-SDI and HDMI 2.0
KONA 5 boasts 4x bi-directional 12G-SDI spigots with a Reference Input and 4K/UltraHD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable, or quad 3G-SDI cables. 2K/HD I/O can be achieved with a single 3G-SDI cable, or dual link 1.5G-SDI, while allowing capture and monitoring via SDI to take place simultaneously.
A full-sized HDMI 2.0 connection offers monitoring and output, with HDR , Deep Colour and HFR support. Across the board, KONA 5 is the professionals choice for post, broadcast, graphics, virtual sets, pre-viz, live compositing and more.
Extended Connectivity
KONA 5 ships with an included breakout cable that offers extensive connectivity for AES, RS-422 control support and Reference:
- 8-Channels of AES/EBU (BNC) In
- 8-Channels of AES/EBU (BNC) Out
- RS-422 9-pin connector for control
- LTC In and Out
Workflow
KONA 5 offers powerful next-generation performance for a range of workflows. Extensive and flexible connectivity will put KONA 5 at the center of your multi-format projects.
HDR
HDR (High Dynamic Range) provides the ability to display a wider and richer range of colours, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colours to be communicated to your audience.
KONA 5 delivers robust HDR compatibility to HDMI displays with support for HLG and HDR 10 with HDR Infoframe metadata, in accordance with HDMI2.0a/CTA-861.3 and HD.
Sync Up
KONA 5 can be locked to an external reference for integration into larger productions, or feed LTC in and out to ensure footage captured with KONA 5 has the proper timecode.
Machine Control
A 9-pin RS-422 port on the included breakout cable allows control of a range of external devices for frame accurate captures and layoffs.
Hardware Keying
The built-in hardware downstream keyer allows graphics and images to be easily overlaid on the input video in realtime.
Legendary Support
AJA Technical Support is recognized as one of the best in the industry and is provided at no additional charge. Our support team will work with you to solve any issues you might encounter and get you working as quickly as possible.
Integration
KONA 5 supports macOS, Windows and Linux, providing incredible 4K and multi-channel power for a wide range of creative applications.
Key Features:
- Supports 4K and UltraHD ingest and output at frame rates up to 50/60 fps
- Supports 4:4:4 and 4:2:2 workflows
- 10-bit 4K/UltraHD and 2K/Dual Link/HD/SD input and output
- 12-bit colour support (application dependent)
- HDMI 2.0 output (4K/UltraHD HFR 4:2:2 10-bit)
- HDR 10 support - HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3
- HLG (Hybrid Log Gamma) support
- 8-Ch. AES/EBU, 8-Ch. embedded HDMI, and 16-Ch. embedded SDI digital audio I/O
- Reference Input on card (Analog black burst or Tri-level)
- Extend external connectivity with included break-out-cable
- RS-422 support on 9-pin connector
- macOS, Windows and Linux support
- Supports 4K and UltraHD ingest and output at frame rates up to 50/60 fps
- Supports 4:4:4 and 4:2:2 workflows
- 10-bit 4K/UltraHD and 2K/Dual Link/HD/SD input and output
- AJA Kona 5
| Video Formats |
Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates. |
|---|---|
| Video Inputs Digital |
*SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous. For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured inputs support UltraHD / 4K only. **Bit depth support is application dependent. Check with your software manufacturer for compatibility. |
| Video Outputs Digital |
*SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous. For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured outputs support UltraHD / 4K only. **Bit depth support is application dependent. Check with your software manufacturer for compatibility. ***HLG support is application dependent. Check with your software manufacturer for compatibility. |
| Audio Inputs Digital |
|
| Audio Outputs Digital |
|
| Downstream Keyer |
|
| Reference |
|
| Timecode |
|
| Electrical Interface |
8-lane PCIe 3.0
|
| Machine Control |
1 - GND
2 - RX- 3 - TX+ 4 - GND 5 - No Connection 6 - GND 7 - RX+ 8 - TX- 9 - GND Shell - GND |
| Noise |
<50dBA (A-weighted at 1m in free air)
|
| Size (w x d x h) |
0.75'' x 6.9'' x 5.0'' (19.05 x 175.26 x 127.00mm)
|
| Weight |
|
| Power |
28W typical, 35W maximum
|
| Environment |
|
