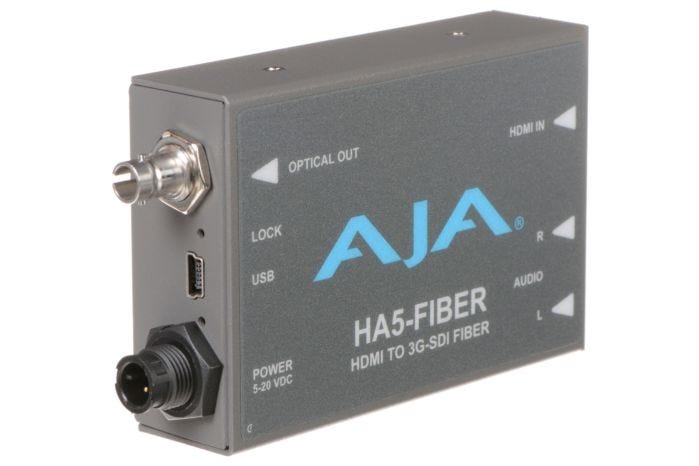

AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter
Availability:In stock
Cat No.
29598
SKU
HA5-FIBER-R0
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£912.00
£760.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter
HDMI to 3G-SDI Fiber Mini Converter from AJA
Integrate HDMI sources into a fiber optic infrastructure with the AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter. Accepting HDMI signals up to 1080p60 along with embedded multichannel audio or analog RCA audio, the HA5-Fiber converts incoming video and audio to a studio-standard 3G-SDI signal, and sends it out through the single-mode ST terminal. Single-mode fiber offers long transmission distances, up to six miles, without degradation or signal loss, and since the HA-5 Fiber converts to 3G-SDI at the source, no extra conversion equipment is necessary. As with AJA's other converters, the HA-5 Fiber is compatible with the Mini-Config software (available for free on AJA's website) for advanced configuration.
Note: Content protected by HDCP is not supported
Key Features:
- Converts HDMI to 3G-SDI over Fiber
- Supports up to 1080p60 Resolution
- Up to 6 mi Transmission Distance
- Supports Embedded HDMI Audio
- Analog Audio Input
- AJA Mini-Config Compatible
- Converts HDMI to 3G-SDI over Fiber
- Supports up to 1080p60 Resolution
- Up to 6 mi Transmission Distance
- Supports Embedded HDMI Audio
- Analog Audio Input
- AJA Mini-Config Compatible
This product includes:
- AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter
| Inputs | 1 x HDMI 1 x Stereo RCA analog audio |
|---|---|
| Outputs | 1 x ST single-mode fiber |
| Format Support | Input:
Output:
|
| Optical Output | Wavelength: 1310 nm Output Power: -2 dBm, typical |
| Power Supply | Input: 100-240 VAC, 50/60 Hz Output: 5 VDC, 4.5 W |
| Dimensions | 4.4 x 2.4 x 1.0" / 112 x 61 x 25 mm |
| Weight | 0.3 lb / 0.2 kg |
