AJA 12G-SDI/DANTE 64-Channel Embedder/Disembedder
Availability:In stock
Cat No.
45560
SKU
OG-DANTE-12GAM
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£3,054.00
£2,545.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

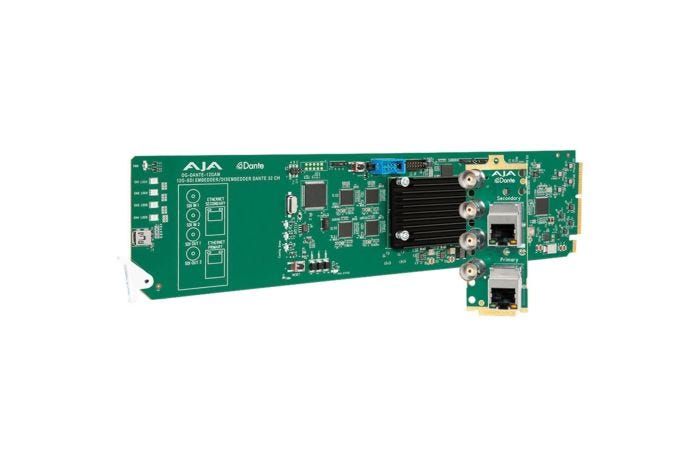

AJA 12G-SDI/DANTE 64-Channel Embedder/Disembedder
OG-DANTE-12GAM is an openGear, Dante audio embedder/disembedder, with dual 12G-SDI input and output ports providing up to 32-channels of audio embedding and 32-channels of disembedding simultaneously. OG-DANTE-12GAM provides the bridge between SDI and Dante infrastructures.
Dante audio networking provides digital audio distribution over local and wide-area networks with low latency, using standard network hardware or by connecting into a standard network infrastructure. This offers many advantages over analog, AES, and MADI infrastructures, including audio system scalability, easier installation, and simplified wiring.
A fully populated OG-X-FR openGear frame with ten OG-DANTE-12GAM cards, provides an incredible 640-channels of audio bridging in a rack-mountable form factor for a wide range of needs.
Key Features:
- Support for 12G/6G/3G-SDI audio embedding to- and from- the Dante audio ecosystem
- Dual, and independent 12G-SDI Input and Output ports, each supporting 16-audio channels, totaling 64-channels per card in a compact design
- 1x Primary and 1x Secondary Gigabit Ethernet ports for Dante network redundancy
- 64-channels of simultaneous SDI/Dante audio bridging per card
- DashBoard support for remote signal status and configuration
- Compatible with a range of Dante Software from Audinate including Dante Controller for routing and configuration choices
- High density and small form factor, enabling 10 cards to be utilized in a single openGear frame for up to 640-channels of SDI/Dante audio bridging
- Supported within OG-X-FR and OG-3-FR openGear frames
- Hot-swap capable
- Support for 12G/6G/3G-SDI audio embedding to- and from- the Dante audio ecosystem
- Dual, and independent 12G-SDI Input and Output ports, each supporting 16-audio channels, totaling 64-channels per card in a compact design
- 1x Primary and 1x Secondary Gigabit Ethernet ports for Dante network redundancy
- 64-channels of simultaneous SDI/Dante audio bridging per card
Video Formats |
|
|---|---|
| Video Input Digital |
2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082 |
| Video Output Digital |
2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K |
| Cable Equalization | 12 Gbps, 65m 6 Gbps, 120m 3 Gbps, 180m 1.5 Gbps, 200m 270 Mbps, 405m |
| Video Path Delay |
Video Out is a delayed, reclocked version of Video In, at the same format and frame rate. Video Out is undefined when no input. Video Latency, time measured between video input and video output connector:
|
| Audio Output Digital |
SDI embedded audio, 24-bit, 8-Channel |
| Audio Input Digital |
SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each |
| Audio Output Digital |
SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each
|
| SDI Embedded Audio |
SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio. |
