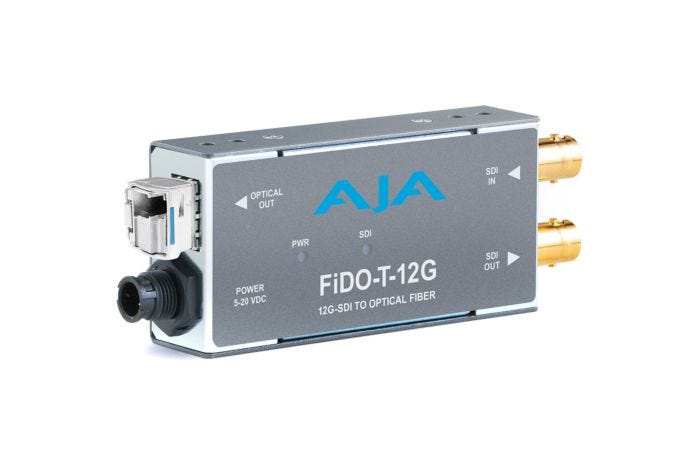

AJA 1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

1-Channel 12G-SDI to Single Mode LC Fiber Transmitter from AJA

The FiDO-T-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations. They also ship with a universal power supply that includes international plug connections for use around the world.

Key Features:

  • Simplex connection (LC connector)
  • 12G-SDI input, which also supports 6G/3G/HD/SD-SDI
  • Reclocked loop through of SDI input
  • Uses 5-20VDC power
  • Simplex connection (LC connector)
  • 12G-SDI input, which also supports 6G/3G/HD/SD-SDI
  • Reclocked loop through of SDI input
  • Uses 5-20VDC power

This product includes:

  • AJA 1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter
Video Formats 270 Mbps - 12 Gbps, format agnostic
Video Input Digital 1-Channel Independent 12G-SDI BNC connector with SDI Loop out, SMPTE 259/292/424/2081/2082
Video Output Digital
  • 1-Channel Independent Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm  (max)
  • Optical Power: -5 dBm (min), 0.5 dBm (max)
  • Extinction Ratio: 5.4 dB (min)
Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • All other rates are passed through and not reclocked
Size (w x d x h)
  • 4.6'' x 1.71'' x .85'' (117 x 43.5 x 21.6mm)
Weight 0.4lb (0.2kg)
Power
  • 2 watts (max)
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
