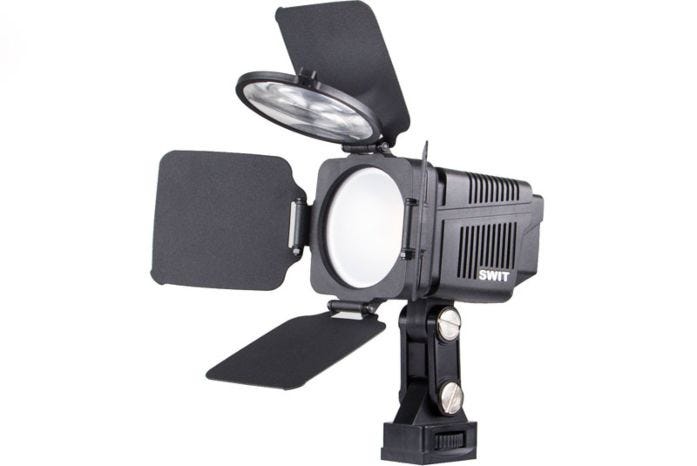

Swit S-2060 Chip Array LED On-Camera Light

Swit S-2060 Chip Array LED On-Camera Light

Chip-on-board LED
Brighter and Non-glaring
The S-2060 on-camera LED light adopts the new generation Chip-on-board LED, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers a equally spread, soft, glareless light, similar to the traditional Halogen bulb light.

Super High CRI
Color Rendering Index value: 96
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. Max value Ra=100.
The normal LED light has Ra 80-85 CRI, while S-2060 offers the super high CRI value of Ra 96, comparable to the traditional halogen bulb light, and will not lose the object original colors.

1500Lux high illuminance
Area light source
S-2060 generate 1500Lux center illuminance at 1 meter distance, equivalent to a 110W halogen bulb.
And the COB LED generate an area light source, more equal and soft than the LED bulb array, and people will not feel glaring when being close interviewed.

60° Wider Beam Angle
Equally spread lights, no visible beam edge
The traditional LED lights can get a high brightness center light, but will dropped down quickly around, which will generate a visible lighting border in the image. In comparison, the S-2060 COB LED generates a 60° wider beam angle, equally spread from the center to edge, and suitable for HD shooting.

Fresnel Focus Lens
Raise the center illuminance to 5000Lux
S-2060 offers a Fresnel focus lens, to increase the center illuminance to 5000Lux, and the beam angle will be contracted to 23°.

10-100% Dimmable
One knob revolve
The dimmer knob is on the rear panel of the light, and can be adjust from 10% to 100% illuminance. The light output is flick free when dimming, and color temperature stays stable.

Color Temperature Adjust
2800K-6000K continuously adjustable
The S-2060 has bi-color COB LEDs, and the color temperature can be continuously adjusted from 2800K to 6000K, by revolving the knob on the rear panel of the light.

6-17V Wide Voltage Power Supply
The S-2060 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries.
The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2060 and get power from D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also select SWIT pole-tap to pole-tap DC cable (S-7108) to get power from pole-tap DC adaptors.

Easy Installation
Both cold-shoe and screw
S-2060 can be fixed on camera via 1/4” screw head, and the package also goes with a spare cold shoe part for users to change the screw connector to cold shoe.

Tilt Angle Adjustment
When installed on ENG cameras, the light head angle can be adjusted forward and backward, up and down, by the connection rod base.
