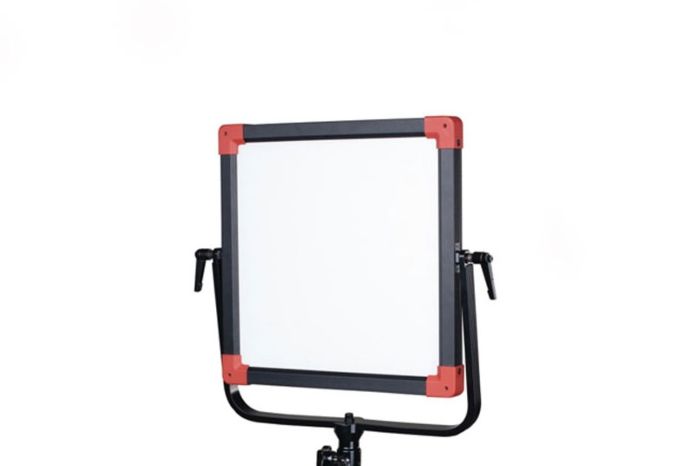

SWIT PL-E60D Portable Bi-Colour LED Panel PL-E60D DMX Single Light

SWIT PL-E60D Portable Bi-Colour LED Panel PL-E60D DMX Single Light

The PL-E60D is and LED panel with a color temperature of 2700-6500K, ideal for reporting or stationary purposes.

320pcs Edge Mounted LEDs
Super thin, area light, soft and glareless

PL-E60D is specially designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60D can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

Laser Dots 90° Light Guide
High efficiency and super bright

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

1500 Lux @ 1 meter
0-100% flick-free dimming

PL-E60D outputs 60W power, feeds 1500Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E60D also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-color Temperature
2700K-6500K continuously adjustable

PL-E60D alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and 6500K.

High Color Reveal Ability
CRI Ra 98; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while PL-E60 offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colors.

LCD Screen Display
Dimmer / color temperature value, battery info

The rear LCD screen can display the current dimmer percentage, color temperature value, and remaining battery indications.

Quick Adjust Mode
By pressing the adjusting knob

PL-E60D supports quick adjusting brightness and color temperature:
Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness;
Press Color temperature knob, it will switch from 50K stepping to the following commonly used color temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

DMX512 control
Dimmer and Color temperature

PL-E60D adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.
Press and hold dimmer knob for 2s to enter communication address setting interface, the address setting range is 001 to 512. 

Interaction Control Mode
Control the lights each other without a DMX controller

Press and hold color temperature adjusting knob for around 2 seconds, the upper left corner of LCD shows "CH" indicating that the communication control mode currently is interaction control mode. In this mode, set the target lights to the same communication address to work normally, and the master slave machine is not distinguished.
Press and hold dimmer knob for 2s to enter communication address setting interface, the address setting range is 001 to 512.

Interaction Control Mode Demonstration
Set the coresponding "CH" address for the PL-E60D which are in the same network to the requirement.

Operate any of the CH 001 light, all the other CH 001 lights can be controlled together.
Max 512 CH addresses can be set.

11-36V Wide Input Voltage
By V-mount/Gold mount battery or 4-pin XLR

PL-E60D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.
(The default battery plate is V-mount.)
 

Key Features

• 320 pieces of SMD-LED diodes
• The unique technology of light guidance in the range of 90 °
• Power 60 W, 1500 Lux @ 1 meter
• Dimming in the 0-100% range
• An effective light distribution angle of 70 °
• 2700K-6500K infinitely adjustable
• Super high CRI Ra 98, TLCI 99
• DMX512 control and interaction control
• LCD color, dimmer and battery information
• DC 11-36V input voltage
• Power supply via V-mount / Gold mount battery
• DMX512 control and interaction control
• Strong, completely metal housing with a U-shaped base

• 320 pieces of SMD-LED diodes
• The unique technology of light guidance in the range of 90 °
• Power 60 W, 1500 Lux @ 1 meter
• Dimming in the 0-100% range

• LED Panel PL-E60D x 1
• AC-DC power supply x 1
• Transport bag x 1
