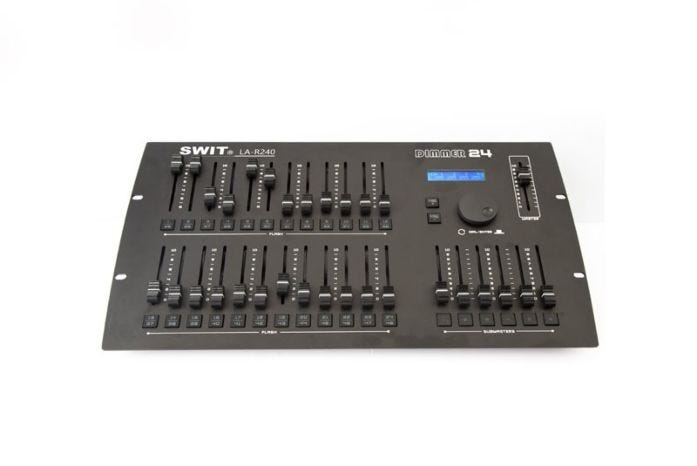

SWIT LA-R240 24-ch DMX512 Light Console
Availability:In stock
Cat No.
50811
SKU
LA-R240
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£529.20
£441.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
SWIT LA-R240 24-ch DMX512 Light Console
24-ch DMX Console
LA-R240 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders, for broadcast studio and stage.
Interface
LA-R240 supports PowerCON AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.
Submaster and Master Control
LA-R240 provides 6x Submaster sliders to group any of the 24 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel, and has FINE +/- buttons to fine adjust slide values.
Serial Connection to Max 96-ch
You can connect up tp 4x LA-R240 by RJ45 cables, to expand DMX channels to Max 96. The Master unit is in charge of DMX 1-24, and the Slave units are DMX 25-48, 49-72 and 73-96.
Key Features:
- Standard DMX512 console with isolater
- 24x channel sliders, 6x submaster, 1x master
- Up to 4 units serial connection to 96 channels
- LCD display DMX values of each channel
- Flash control buttons for each slider
- 19-inch rack mountable
- Standard DMX512 console with isolater
- 24x channel sliders, 6x submaster, 1x master
- Up to 4 units serial connection to 96 channels
- LCD display DMX values of each channel
- Flash control buttons for each slider
- 19-inch rack mountable
| Channel | 24 |
| Submaster | 6 |
| Master | 1 |
| DMX | 3-pin XLR Female x1; Male x1 |
| Serial Connection | 4 units, Max 96-ch |
| Power | PowerCON AC 88-256V 50/60Hz IN x1; LOOPx1 |
| Dimension | 482×265×75mm |
| Weight | 2.65kg |
