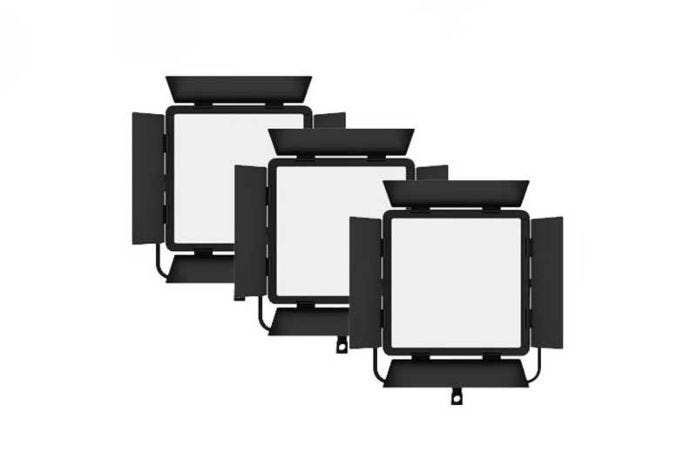

SWIT CL-60D 60W 3KIT 1:1 Bi-color SMD LED Panel Light

SWIT CL-60D 60W 3KIT 1:1 Bi-color SMD LED Panel Light

SMD LED Studio Light
Brighter, softer, wider beam angle.

CL-60D is a 60W 1:1 Bi-colour SMD LED panel light, with DMX control, high CRI/TLCI and accurate colour performance, for broadcast studio, mobile studio, live streaming studio or interview kit applications.

900pcs Surface Mounted LEDs

CL-60D adopts 900pcs SMD LEDs, featured;

• Higher uniformity of illuminance
• Wider beam angle
• Higher colour rendering index
• Softer and Brighter
• Longer life time

An ideal light source for Broadcast studios, green keyer, interview kit, live streaming etc.

2000 Lux @ 1 Meter
CL-60D outputs 60W power, feeds 2000Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Wider Beam Angle
The SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge.

The wider angle equally spread light produces a nature light environment in studio.

Bi-colour Temperature
2700K-6500K continuously adjustable

CL-60D alternated with 2700K and 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, 50K step.

Accurate Color Render
CRI 98; TLCI 99

CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consis- tency Index) is special for the colour reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while CL-60D offers the super high CRI at 98 and TLCI at 99, and will not lose the object original colours.

DMX512 Control 5pin XLR in and out
DMX address: N= Dimmer; N+1= Colour temp Provides a 5V USB power output socket. You can use SWIT LA-WR8 Pocket Wireless DMX controller and power the wireless DMX adaptor by the on board USB socket.

Press and hold dimmer knob for 2 seconds to enter DMX address setting from 001 to 512.

LCD screen display; Dimmer / colour temp / DMX address
The rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

DC 11-17V Power Supply; By V-mount battery or AC-DC adaptor
CL-60D supports 11-17V voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries. (The default battery plate is V-mount.)

Optional Honeycomb
CL-60D provides a 40° metal honeycomb plate for optional purchase. The honeycomb can be used together with barndoors. Honeycomb Part number: LA-G60

• Higher uniformity of illuminance
• Wider beam angle
• Higher colour rendering index
• Softer and Brighter
• Longer life time

• L-60D light x 3
• AC-DC Adaptor x 3
• Trolley Case x 1
