Swit PL-E60 Portable Bi-color SMD Panel Light PL-E60

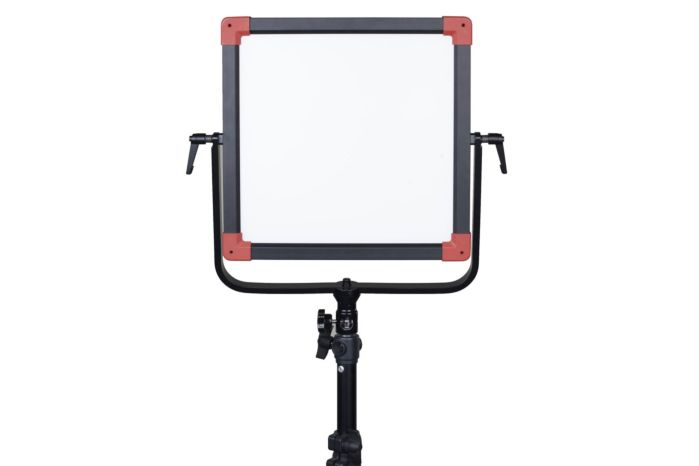

Swit PL-E60 Portable Bi-color SMD Panel Light

320pcs Edge-Mounted LEDs
Super-thin, area light, soft, and glare-free
The PL-E60 is designed specifically for portable field lighting applications. It features 320 SMD LEDs mounted along the inner edge of the light frame. Using SWIT's innovative 90° light guide technology, the PL-E60 delivers bright, soft, and evenly diffused light. Its slim and lightweight design makes it highly portable, making it the ideal lighting solution for interviews and field video productions.

Laser Dots 90° Light Guide
High efficiency and ultra-bright performance
Traditional edge-mounted LED lights often struggle with brightness due to significant light loss toward the back, even when using reflective boards. SWIT's innovative technology addresses this issue by incorporating laser-etched dots with precisely calculated spacing on the reflection glass. These laser dots converge the multi-angled edge light and redirect it at a 90° angle to the front, minimizing light loss. This allows slim, edge-mounted LED lights to deliver high brightness without sacrificing portability or efficiency.

1500 Lux @ 1 Meter
0-100% Flicker-Free Dimming
The PL-E60 delivers an impressive 60W output with a brightness of 1500 Lux at 1 meter (center)—much brighter than other LED panels of similar size. It features an effective 70° beam angle, maintaining consistent brightness until a 50% decline at the edges. The PL-E60 also supports 0-100% PWM digital dimming, ensuring smooth and flicker-free adjustments for professional-grade lighting control.

Bi-Color Temperature
2700K–6500K Continuously Adjustable
The PL-E60 is equipped with alternating 2700K and 6500K LEDs, allowing the color temperature to be seamlessly adjusted anywhere between 2700K and 6500K.

High Color Rendering Index
CRI Ra 98 | TLCI 99
The CRI (Color Rendering Index) measures a light source's ability to accurately reveal the colors of objects compared to natural light. Similarly, the TLCI (Television Lighting Consistency Index) evaluates how faithfully a light source reproduces colors as seen by a camera sensor, with a maximum score of 100. While typical LED lights offer a CRI or TLCI of 80–85, the PL-E60 stands out with an exceptionally high CRI of 98 and TLCI of 99, ensuring colors remain true to life without compromising their natural appearance.

LCD Screen Display
Dimmer | Color | DMX Channel | Battery Info
The rear LCD screen provides clear, real-time information on the current dimmer percentage, color temperature, DMX channel, and CH channel. It also shows the remaining battery level, ensuring easy monitoring and precise control during operation.

Quick Adjust Mode
Adjust Brightness & Color Temperature with Ease
The PL-E60 offers a convenient quick adjust feature for both brightness and color temperature:

• Press the Dimmer knob to toggle between 1% stepping and 10% stepping for faster brightness adjustments.
• Press the Color Temperature knob to switch between 50K stepping and commonly used color temperatures: 2700K, 3200K, 4500K, 5600K, and 6500K.

11-36V Wide Input Voltage
Power Options: V-mount/Gold Mount Battery or 4-pin XLR
The PL-E60 supports a wide input voltage range of 11-36V. It is equipped with a 4-pin XLR DC socket and comes with a V-mount or Gold mount plate for battery power (the default plate is V-mount). This flexibility allows for versatile power solutions in various field environments.


Barn Door / Honeycomb
Optional Accessories, Easy to Assemble
The PL-E60 features an all-metal housing and offers 4-leaf metal barn doors and a 40° metal honeycomb as optional accessories. These accessories are easy to assemble and can be purchased separately.

• Barn Door Model: LA-HE60
• Honeycomb Model: LA-GE60
