Litepanels Studio X4 Bi-Color 150W LED Fresnel (Standard Yoke)

Availability:In stock
Cat No.
50660
SKU
960-4202
Litepanels

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£2,514.00 £2,095.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

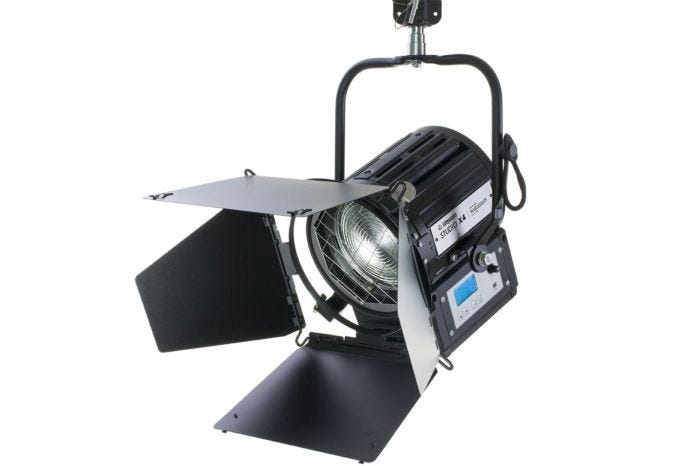

Litepanels Studio X4 Bi-Color 150W LED Fresnel (Standard Yoke)

Litepanels Studio X LED Fresnels, engineered by world renowned broadcast lighting professionals Quartzcolor, deliver high-performance, directional, bright white light with precision spot to flood beam control and consistent quality.

Natural talent light with perfect skin tone rendering is achieved with high output COB LEDs to produce superior white light. With no variation in quality at any dimming level from 0-100%, Studio X Fresnels perfectly match ambient and practical set lighting to show talent in a naturally realistic light.

The Studio X4 Bi-Color 150W has a 7” lens with a spot-to flood beam angle range of 10°-45°. With a maximum output of 8,630 lux at 10ft/3m (spot 5,600K), its output at 3,200K is similar to a 650W traditional tungsten Fresnel.

Advanced thermal management ensures 50,000+ hours of LED engine life, while individual burn-in and calibration tests ensure quality and consistency.

With high-quality, single source wrap-around illumination, Studio X is the perfect choice to light your talent – naturally.

Key Features:

  • Pure, bright, and consistent white light
  • Perfect skin tone rendering
  • Even field throughout the zoom range
  • Effective light control with barndoors
  • DMX, RDM, and local control
  • Accurate, fine dimming curve
  • Installed in leading broadcast studios
  • Advanced thermal management
  • Pure, bright, and consistent white light
  • Perfect skin tone rendering
  • Even field throughout the zoom range
  • Effective light control with barndoors
  • DMX, RDM, and local control
  • Accurate, fine dimming curve
  • Installed in leading broadcast studios
  • Advanced thermal management
  • LCD graphic display and on-board control panel
  • 5-pin RDM-DMX in connector
  • Standard yoke with 5/8” (16mm) Baby Pin
  • PowerCON in connector • built-in universal power supply
  • 4-leaf rotating barndoor Ø 6.6” (168mm)
  • 10ft (3m) UK powerCON True 1 power cable
Optical Data
  • LED engine: Bi-Color COB
  • Lens: Fresnel 175mm / 7" Ø, low expansion borosilicate
  • Beam angle: 10° - 45°
  • Correlated Color Temperature: Variable 2,700K to 6,500K
  • Daylight (5,600K) lux @16ft/5m, Spot 10°: 3,107
  • Daylight (5,600K) lux @16ft/5m, Flood 45°: 518
  • Tungsten (3,200K) lux @16ft/5m, Spot 10°: 2,599
  • Tungsten (3,200K) lux @16ft/5m, Flood 45°: 443
  • CRI: 97
  • TLCI: 97
Mechanical Data
  • Mounting: Yoke with lateral thrust bearing and lock off knob, Jr Pin [28mm / 1 ⅛”]
  • Weight: 9.3kg / 20.5lb
  • Tilt angle: +/- 90°
  • Barndoor diameter: 269mm / 10.6”
  • Safety mesh: Stainless steel 25x25mm / 1x1"
Electrical
  • Nominal power draw: 150W maximum
  • Power supply: Integrated, universal
  • Mains input: 90 – 260 Vac, 50/60 Hz, autosensing
  • Power connection: powerCON TRUE 1, in and through
  • IP rating: IP21
