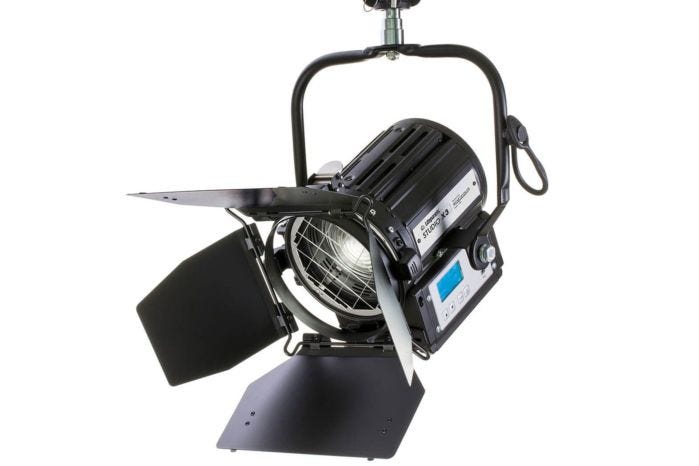

Litepanels Studio X3 Bi-Color 100W LED Fresnel (standard yoke, UK power cable)

Availability:In stock
Cat No.
50654
SKU
960-3203
Litepanels

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£2,086.80 £1,739.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Litepanels Studio X3 Bi-Color 100W LED Fresnel (standard yoke, UK power cable)

Litepanels Studio X LED Fresnels, engineered by world renowned broadcast lighting professionals Quartzcolor, deliver high-performance, directional, bright white light with precision spot to flood beam control and consistent quality.

Natural talent light with perfect skin tone rendering is achieved with high output COB LEDs to produce superior white light. With no variation in quality at any dimming level from 0-100%, Studio X Fresnels perfectly match ambient and practical set lighting to show talent in a naturally realistic light.

The Studio X3 Bi-Color 100W has a 5” lens with a wide spot to-flood beam angle range of 8°-53°. With a maximum output of 5,240 lux at 10ft/3m (spot 5,600K), its output at 3,200K is similar to a 500W traditional tungsten Fresnel.

Advanced thermal management ensures 50,000+ hours of LED engine life, while individual burn-in and calibration tests ensure quality and consistency.

With high-quality, single source wrap-around illumination, Studio X is the perfect choice to light your talent – naturally.

Key Features:

  • Pure, bright, and consistent white light
  • Perfect skin tone rendering
  • Even field throughout the zoom range
  • Effective light control with barndoors
  • DMX, RDM, and local control
  • Accurate, fine dimming curve
  • Installed in leading broadcast studios
  • Advanced thermal management
  • Pure, bright, and consistent white light
  • Perfect skin tone rendering
  • Even field throughout the zoom range
  • Effective light control with barndoors
  • DMX, RDM, and local control
  • Accurate, fine dimming curve
  • Installed in leading broadcast studios
  • Advanced thermal management
  • LCD graphic display and on-board control panel
  • 5-pin RDM-DMX in connector
  • Standard yoke with 5/8” (16mm) Baby Pin
  • PowerCON in connector • built-in universal power supply
  • 4-leaf rotating barndoor Ø 6.6” (168mm)
  • 10ft (3m) UK powerCON True 1 power cable
Optical Data
  • LED engine: Bi-Color COB
  • Lens: Fresnel 130mm / 5" Ø, low expansion borosilicate
  • Beam angle: 8° - 53°
  • Correlated Color Temperature: Variable 2,700K to 6,500K
  • Daylight (5,600K) lux @16ft/5m, Spot 8°: 1,886
  • Daylight (5,600K) lux @16ft/5m, Flood 53°: 237
  • Tungsten (3,200K) lux @16ft/5m, Spot 8°: 1,602
  • Tungsten (3,200K) lux @16ft/5m, Flood 53°: 205
  • CRI: 97
  • TLCI: 97
Mechanical Data
  • Mounting: Yoke with lateral thrust bearing and lock off knob, Jr Pin [28mm / 1 ⅛”]
  • Weight: 5.3kg / 11.68lb
  • Tilt angle: +/- 90°
  • Barndoor diameter: 200mm / 7.9”
  • Safety mesh: Stainless steel 25x25mm / 1x1
Electrical
  • Nominal power draw: 100W maximum
  • Power supply: Integrated, universal
  • Mains input: 90 – 260 Vac, 50/60 Hz, autosensing
  • Power connection: powerCON TRUE 1, in and through
  • IP rating: IP21
