Litepanels Studio X2 Daylight 60W LED Fresnel (Standard Yoke, UK power Cable)

Availability:In stock
Cat No.
50650
SKU
960-2201
Litepanels

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£1,564.80 £1,304.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

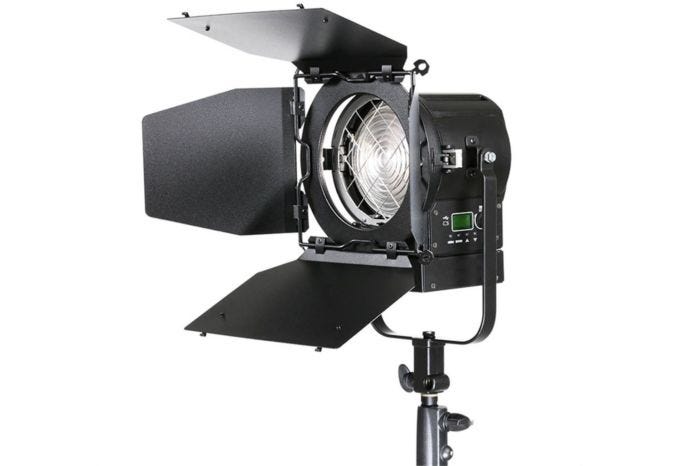

Litepanels Studio X2 Daylight 60W LED Fresnel (Standard Yoke, UK power Cable)

Litepanels Studio X LED Fresnels, engineered by world renowned broadcast lighting professionals Quartzcolor, deliver high-performance, directional, bright white light with precision spot to flood beam control and consistent quality.

Natural talent light with perfect skin tone rendering is achieved with high output COB LEDs to produce superior white light. With no variation in quality at any dimming level from 0-100%, Studio X Fresnels perfectly match ambient and practical set lighting to show talent in a naturally realistic light.

The Studio X2 Daylight (5,600K) 60W Fresnel has a 5” lens in a practical compact chassis with spot-to-flood beam angle range of 12°-48°.

The fixture offers output of 2,130 lux at 10ft/3m (spot). Advanced thermal management ensures 50,000+ hours of LED engine life, while individual burn-in and calibration tests ensure quality and consistency.

With high-quality, single source wrap-around illumination, Studio X is the perfect choice to light your talent – naturally.

Key Features:

  • Pure, bright, and consistent white light
  • Perfect skin tone rendering
  • Even field throughout the zoom range
  • Effective light control with barndoors
  • DMX, RDM, and local control
  • Accurate, fine dimming curve
  • Installed in leading broadcast studios
  • Advanced thermal management
  • Pure, bright, and consistent white light
  • Perfect skin tone rendering
  • Even field throughout the zoom range
  • Effective light control with barndoors
  • DMX, RDM, and local control
  • Accurate, fine dimming curve
  • Installed in leading broadcast studios
  • Advanced thermal management
  • LCD graphic display and on-board control panel
  • 5-pin RDM-DMX in connector
  • Standard yoke with 5/8” (16mm) Baby Pin
  • PowerCON in connector • built-in universal power supply
  • 4-leaf rotating barndoor Ø 6.6” (168mm)
  • 10ft (3m) UK powerCON True 1 power cable
Optical Data
  • LED engine: Daylight COB
  • Lens: Fresnel 130mm / 5" Ø, low expansion borosilicate
  • Beam angle: 12° - 48°
  • Correlated Color Temperature: 5,600K
  • Daylight (5,600K) lux @16ft/5m, Spot 12°: 767
  • Daylight (5,600K) lux @16ft/5m, Flood 48°: 195
  • CRI: >90
    Operational Data
  • Focus adjustment: Wire focus mechanism on Teflon bushing
  • Dimming control: PWM with 3 frequency presets, 0-100% continuously adjustable
  • Local control: Single dial (dimming) and keypad controller with backlit LCD display
  • Control connections: 5-Pin XLR in and through, Mini-USB
  • DMX control: Dimming, 8-bit and 16-bit
  • RDM control: DMX setup, hour counter, temperature
  • Fan: High efficiency convection, super silent fan with 3 speed presets
  • Software [Mini-USB]: Fixture status, firmware upgrade through PC
  • Ambient operating temperature: 0° - 40°C / 32°-104°F
  • Estimated LED lifetime: 50,000 hrs
Mechanical Data
  • Mounting: Yoke with Baby Pin [16mm / 5/8"]
  • Weight: 3.5kg / 7.72lb
  • Tilt angle: +/- 90°
  • Barndoor diameter: 168mm / 6.6”
  • Safety mesh: Stainless steel 168mm / 6.6”
Electrical
  • Nominal power draw: 60W maximum
  • Power supply: Integrated, universal
  • Mains input: 80 – 260 Vac, 50 – 60 Hz, autosensing
  • Power connection: powerCON TRUE 1 in
  • IP rating: IP21
