Dedolight DLED9.1SE-D-DMX Studio Edition Daylight LED Light Head

Availability:In stock
Cat No.
19613
SKU
DLED9SE-D-DMX
Dedo

Order Now - Usually available to despatch in 2-3 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£1,774.80 £1,479.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

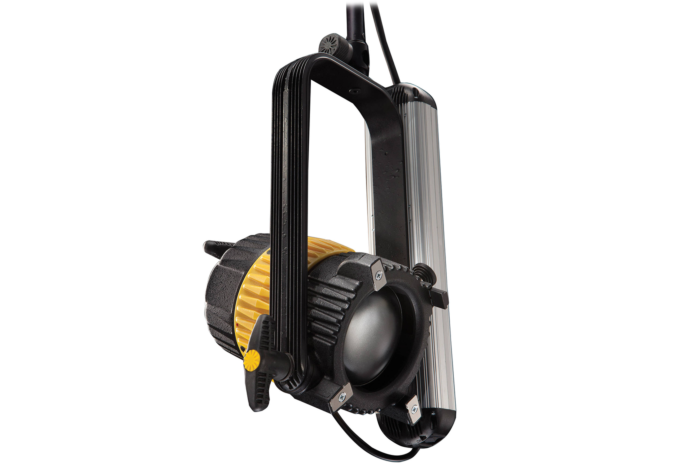

Dedolight DLED9.1SE-D-DMX Studio Edition Daylight LED Light Head

The DLED9.1SE-D-DMX Studio Edition Daylight LED Light Head from Dedolight is a capable 5,600K LED light source with quality colour reproduction due to a CRI of >91.

This DMX compatible Studio Edition comes on a U-shaped yoke mount with a 5/8" receptacle and 1 1/8" stud for a straightforward mounting setup as well as an AC power supply. The DLED9.1 is focusable from 50 to 4° and can be continuously dimmed from 100-0%. Additionally, it can output up to 60,000 lux at 3' when set to spot and has a low power draw of 90W.

The compact light head is designed for passive cooling as well, meaning that there are no fans that can add unwanted noise to the scene. It can operate in any position and has a holder for 5.1" diameter accessories, such as a wide-angle attachment for expanding the focus range. The light features Protection Class III, SELV, and IP40 ratings for safety.


  • Control your light remotely with the DMX compatible power supply
  • Optional aspheric wide-angle attachment widens beam angle range to 75 to 44°
  • Accepts Series 400 accessories and imagers
  • Focus control is handled through one complete turn on the focus ring
  • Tilt control features permanent friction
  • Protection Class III, SELV, and IP40 rated
  • Can run on universal 90-264 VAC power source

Key Features:

  • CRI: >91
  • Colour Temperature: 5,600K
  • Focusable from 50 to 4°
  • Dimming from 100-0%
  • Output: 60,000 lux at 3' in Spot Mode
  • Power Draw: 90W
  • Passive Cooling
  • Any Operating Position
  • DMX Control Compatibility
  • U-Shaped Yoke Mount & AC Power Supply
  • CRI: >91
  • Colour Temperature: 5,600K
  • Focusable from 50 to 4°
  • Dimming from 100-0%
  • Output: 60,000 lux at 3' in Spot Mode
  • Power Draw: 90W
  • Passive Cooling
  • Any Operating Position
  • DMX Control Compatibility
  • U-Shaped Yoke Mount & AC Power Supply

This product includes:

  • Dedolight DLED9.1SE-D-DMX Studio Edition Daylight LED Light Head
  • DT9.1-DMX AC Power Supply for DLED9.1 LED Lights
Rating CRI: >91
Colour Temperature 5,600 K
Focus Range 50 to 4° (1:12)
With Optional Aspheric Wide-Angle Attachment: 75 to 44°
Focus Control Two complete turns on focus ring
Photometrics Flood
At 3' (1 m): 472 fc (5080 lux)
At 6' (2 m): 118 fc (1270 lux)
At 9' (3 m): 53 fc (565 lux)
At 12' (4 m): 30 fc (318 lux)
At 15' (5 m): 19 fc (203 lux)
At 30' (10 m): 5 fc (51 lux)

Medium
At 3' (1 m): 613 fc (6600 lux)
At 6' (2 m): 153 fc (1650 lux)
At 9' (3 m): 68 fc (733 lux)
At 12' (4 m): 38 fc (413 lux)
At 15' (5 m): 25 fc (264 lux)
At 30' (10 m): 5.6 fc (66 lux)

Spot
At 3' (1 m): 5576 fc (60000 lux)
At 6' (2 m): 1394 fc (15000 lux)
At 9' (3 m): 620 fc (6666 lux)
At 12' (4 m): 349 fc (3750 lux)
At 15' (5 m): 223 fc (2400 lux)
At 30' (10 m): 56 fc (600 lux)

Power Draw 90 W
Operating Position Any
Dimming 100-0%, continuous
Tilt Permanent friction
Accessory Size 5.1" (129 mm) diameter
Mount U-shaped yoke with 5/8" (16 mm) receptacle and 1 1/8" (28 mm) stud
Operating Voltage 90-264 VAC
Compatibility DMX
Safety
  • Protection Class III
  • SELV
  • IP40
  • No UV radiation
Dimensions 9.4 x 15.0 x 9.2" (23.9 x 38.1 x 23.4 cm)
Weight
  • Light Head: 8.2 lb (3.7 kg)
  • Power Supply: 3.1 lb (1.4 kg)
