Astera PixelBrick

Availability:In stock
Cat No.
45565
SKU
ASPPB15
Astera

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£390.00 £325.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

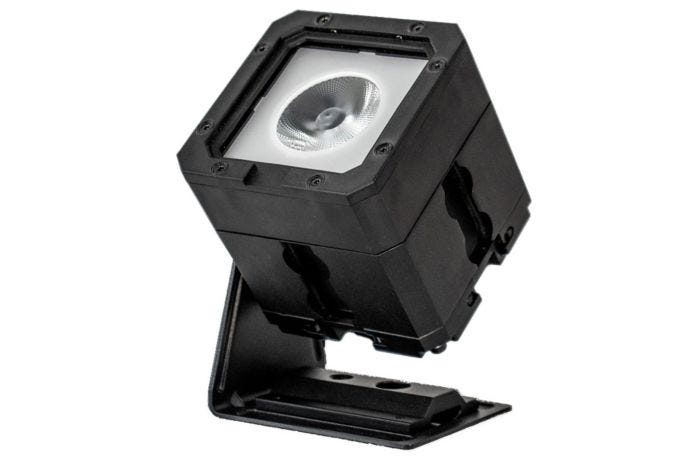

Astera PixelBrick

Say hello to our next-generation multi-purpose light. In addition to being a battery-powered uplight and spotlight with 5 different beam options, multiple PixelBricks can be connected to form clusters and shapes.

With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light which meets the highest demands of film, TV and stage clients.

Key Features:

  • Combine several units into a cluster
  • Create shapes using various mounting accessories
  • Titan LED Engine
  • Filters and Dome create different beams and looks
  • AirlineTrack for accessories
  • Backside display with dedicated Color and Brightness buttons
  • Removeable bracket
  • Combine several units into a cluster
  • Create shapes using various mounting accessories
  • Titan LED Engine
  • Filters and Dome create different beams and looks

Optical

Order Code: PB15
LED Engine: Titan LED Engine
Colors: RGB Mint Amber
Total LED Power: 15W
Power Draw: 12W
Light output: 2700K, 3200K, 5500K:* 388lm, 450lm, 375lm
CRI(Ra)/TLCI 3200-6500K*: =96
Beam Angle: 13°
Strobe: 0 – 25Hz
Pixels: 1



Electrical Battery Lifetime: 70 % after 300 cycles
Battery Runtime: up to 20 hours
Charging Time (nominal): 4 hrs
Input Voltage: 24VDC
Input Current: 0.8A
Control Wired DMX: Yes (via PWB-2-86)
CRMX Receiver: Built-in
Wireless Frequencies: CRMX 2.4GHz, UHF, Bluetooth
Range (m/yds): 300 / 330yds
Construction Housing: Aluminium
IP Rating: IP65
Ambient Temperature (°C/°F): 0°- 40° / 32°- 104°
Weight (kg/lbs): 1.12 kg / 2.47 lbs
Dimensions (mm/inches): 91 x 91 x 94 / 3.6 x 3.6 x 3.7
