Astera HydraPanel

Availability:In stock
Cat No.
52405
SKU
ASPFP6
Astera

Not in stock - Usually delivered in 10-14 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£402.00 £335.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

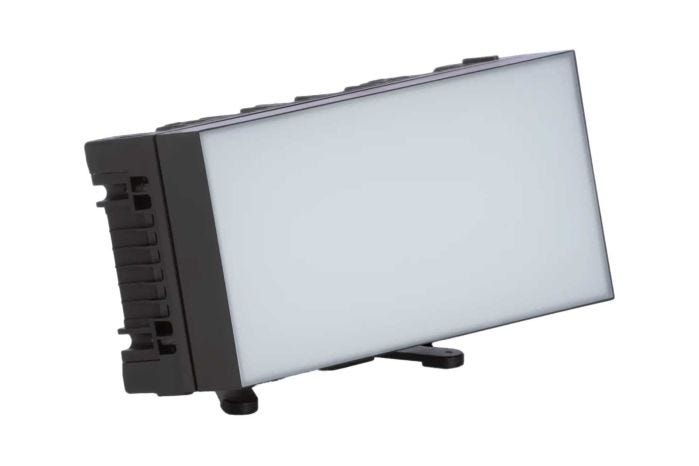

Astera HydraPanel

Beam shaping with six included light modifiers and a large range of mounting options make HydraPanel more flexible than any other product in its class. The full-spectrum Titan LED Engine generates an impressive 1300 Lumen output while running on battery power.

Combine Panels
Attach up to 4 Hydra Panels to each other with the included ConnectorPlate and mount this 0.5 x 1 foot panel with the included Babypin.
Our SyncControl technology lets connected panels communicate with each other. Color or brightness settings from any of the control panels affect all connected lights.

6 Pixels
Get creative and display pixelated effects on your HydraPanel. For filming we have preinstalled effects such as Police, Fire, Welding etc which can be customized to your needs. When several panels are connected, effects can stretch over multiple units.

TouchSlider
TouchSlider makes it faster and easier to input values. It can be used to input Color, Brightness, DMX address and Fixture Number and only gets activated when you press the respective button or go to the respective point in the menu.
It can be operated by swiping over its surface or by clicking onto the + and – buttons. Tapping in the middle of the slider means ENTER and confirms values.

Seamless Runtime
To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.

Effects
Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.

Talkback+
Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Anti-Theft
When enabled, the integrated theft alarm gives visual and audible alarm if lights are being moved. In addition, the AsteraApp also shows the alarm.

Emergency Light
With this innovative feature, the lights can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.

  • 1 x HydraPanel (FP6)
  • 1 x DiffusorSheet 100 (FP6-DS-100)
  • 1 x GelHolder (FP6-GH)
  • 1 x SoftFrame 100 (FP6-SF-100)
  • 1 x Intensifier 80 (FP6-INT-80)
  • 1 x EggCrate 40 (FP6-EGC-40)
  • 1 x EggCrate 6 (FP6-EGC-60)
  • 1 x FlexBase (FP6-FB)
  • 1 x ConnectorPlate (FP6-CP)
  • 1 x Babypin (AX-BBP-1/4)
  • 2 x Waterproof Protection Cover for PixelBrick & HydraPanel (PB15-PLG)
Order Code FP6
LED Engine Titan LED Engine
Colors RGBMintAmber
Total LED Power 25 W
LED Power Draw 17 W
Luminous Flux 3200K 1102 Lumens
Luminous Flux 4000K 1287 Lumens
Luminous Flux 5500K 1298 Lumens
Light Output 3200 K @ 1m 443 Lux
Light Output 4000 K @ 1m 512 Lux
Light Output 5500 K @ 1m 516 Lux
CRI (Ra)/ TLCI 3200- 6500 K* ≥96
Beam Angle 110° x 100°
Field Angle 150° x 145°
Strobe 0 – 25 Hertz
Pixels 6
Battery Runtime up to 20 hours
Battery Runtime Max Brightness 1 h 45 m
Battery Lifetime 70 % after 300 cycles
Charging Time (nominal) 3 hours
DC Input 24 VDC – 0.85 A
DC Connector 5.5 mm x 2.1 mm
Wired DMX Yes (via FP1-PWB/ FP3-DTL/ PWB-2-86)
CRMX Receiver Built-in
BluetoothBridge BTB Built-in
Wireless Protocols CRMX, UHF, Bluetooth, WiFi
Wireless Range CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control Yes
ControlSync Yes
TouchSlider Yes
Housing Material Polymer & Metal
IP Rating unwired IP65 (only with PB15-PLG)
IP Rating wired with PWB-CAB-5/-10/-15/-0.2 IP65
Ambient Operating Temperature 0 – 40 °C / 32 – 104 °F
Weight 604 g / 1.3 lbs
Dimensions L x W x D 166 mm x 85 mm x 43.5 mm / 6.53" x 3.34" x 1.71"
Mounting Options 2 x ColdShoe 3 x M5 thread 1 x SafetyWire Eyelet
Footnotes *Typical value
