Amaran F22x Flexible Light (UK Version)

Availability:In stock
Cat No.
49370
SKU
6971842183296
Amaran

Not in stock - Usually delivered in 2-3 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£697.20 £581.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £250

  • Price Match

    Price Match

    Request here

Product Information

Amaran F22x Flexible Light (UK Version)

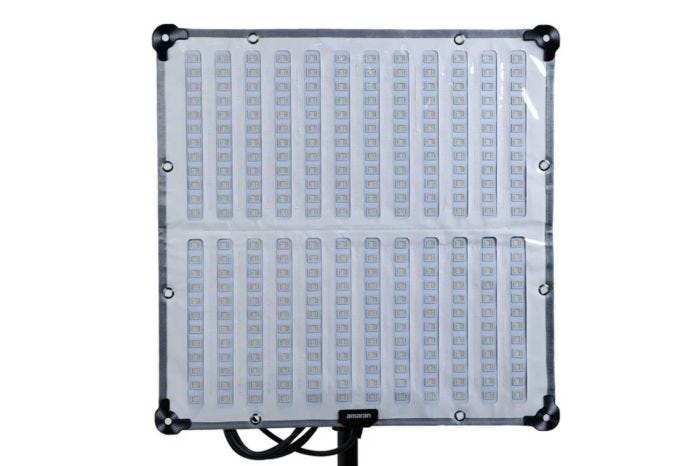

Introducing the amaran F22x, a powerful and versatile flexible LED Mat that offers outstanding light output and color rendering — suitable for a variety of users, from filmmakers to videographers, content creators, and even photographers. With 200W of output power, this ultra-lightweight (0.8kg) 2'x2' fixture is capable of outputting 6,960+ lux at 1 meter (5600K), surpassing anything else in its class. You can tune the F22x’s high-output bi-color chipset from 2500K to 7,500K, and trigger up to 9 different lighting FX. Install the included foldable softbox and instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine with stellar CRI and TLCI scores of 95+ and 98+. With stepless dimming from 0 to 100%, frequency selection for tuning out flicker, and the F22x’s Sidus Link app control, you can be sure to always dial in your perfect lighting design.

Building the F22x is quick and convenient with the compact, folding X-Frame that stretches out the F22x into a rigid panel. This frame can be attached directly to a C- Stand grip head using the Straight Baby Pin adapter, or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount, providing an ideal option for all types of filmmakers and creators.

Attach the included softbox, one of two strengths of diffusion, and the fabric grid using the integrated hook-and-loop fabric to further finesse your lighting design and add a beautifully controlled soft light to your scene.

You can also swap out the softbox for an amaran F22 lantern modifier*, allowing you to replicate a volumetric lantern or pancake light with an ultra-light full-color fixture.

With an integrated 3-meter long head cable and the included 3-meter long extension, the F22x can reach out 6 meters away from its compact control box. Engineered from the ground up for the perfect balance of size, weight, and intensity, the F22x’s LED and heat dissipation design results in a heavy-weight punch from a flexible feather-weight design.

Each control box is also outfitted with a multi-voltage battery plate so you can use a capable 14.4V battery to achieve half power, or max out the intensity with full power when using compatible 26V or 28.8V batteries. You can also achieve full output when using the AC power supply, each of which comes with a specially designed battery plate bracket for a seamless user experience. And when combined with the soft carrying case, the F22x becomes a portable light that you can take anywhere for any production.

The Sidus Link app unlocks tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX, all from your phone or tablet. And unique to the newest fixtures in the amaran product line, you can control the F22x using DMX with a special USB-C to 5-Pin DMX512 In & Out Adapter Cable, granting professional-level control to your new favorite flexible light.

*Lantern modifier sold separately

Key Features:

  • 200W Output 2’x2’ Bi-Color Flexible LED Mat
  • 240W Max Power Draw
  • 6,960+ lux @ 1 meter (5600K)
  • Tunable CCT from 2,500K to 7,500K
  • CRI: 95+, TLCI: 98+, CQS: 96+
  • SSI (Tungsten): 81+, SSI (D56): 72+
  • Stepless Dimming from 0 to 100%
  • Ultra-Lightweight LED Mat: 0.80kg / 1.76lbs
  • Sidus Link App Control
  • 3 Meter Head Cable Extension
  • DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
  • 9 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe,
  • Explosion, Faulty Bulb, Pulsing
  • Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment
  • Easy Mounting AC Power Supply with Included Battery Bracket
  • Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
  • V-Mount & Gold Mount Versions Available*
  • Soft Carrying Case Included
  • Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
  • Lantern Accessory with Light Control Skirt (Sold Separately)

*In Select Regions

  • 200W Output 2’x2’ Bi-Color Flexible LED Mat
  • 240W Max Power Draw
  • 6,960+ lux @ 1 meter (5600K)
  • Tunable CCT from 2,500K to 7,500K
  • CRI: 95+, TLCI: 98+, CQS: 96+
  • SSI (Tungsten): 81+, SSI (D56): 72+
  • amaran F22x Bi-Color 2x2 LED Flexible Mat x1
  • amaran F22x Control Box x1
  • amaran F22x Head Cable Extension (3m) x1
  • amaran F22 Support Bracket x1
  • amaran Flexible Light Right Angle Baby Pin Adapter x1
  • amaran Flexible Light Straight Baby Pin Adapter x1
  • Tilting Stand Mount x1
  • amaran F22 Soft Box Frame x1
  • amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth) x1
  • amaran F22 Diffusion Cloth 2 (2.5 Stop) x1
  • amaran F22 Light Control Grid x1
  • AC Power Supply x1
  • AC Power Cable x1
  • amaran Flexible Light Carrying Case x1
CCT

2500K ~ 7500K

CRI

≥95

TLCI

≥97

CQS
≥96
TM-30 RF (Average)
94
TM-30 RG (Average)
102
SSI (Tungsten)
≥83
SSI (D56)
≥74
Color Chipset Red, Green, Blue, Warm White,
Cool White
Beam Angle (Half-
Peak Angle)
Control Grid
45°
Max Power Output ≤200W
Max Power Consumption ≤2400W
Operating Current 5A
Operating
Voltage

AC Power Supply 48V DC
3-Pin XLR DC 48V/5A DC
V/Gold-Mount Battery
Half
Output
12 ~ 16.8V (14.4V/10A)
22V ~ 33.6V (26V/6A, 28.8V/5A)
Full
Output
22V ~ 33.6V (26V/11A, 28.8V/10A)
DC Input 48V 3-Pin XLR
AC Power Cable IEC C13 AC Power Cable (4m)
Operating Temperature -10°C ~ 40°C / -4°F ~ 113°F
Control Methods On-board, Sidus Link App, DMX
via USB-C to 5-Pin DMX512 In &
Out Adapter Cable
Connectivity Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range ≥80m / 262.5ft
Firmware Upgradeable Sidus Link OTA
Display Type OLED
Cooling Method
Lamp Head Passive Cooling
Control Box Active Cooling
Mounting

Tilting Mounting Support, Right-
Angle Baby Pin Adapter (16mm),

Straight Baby Pin Adapter (16mm)

Estimated LED Lifetime (L70)
50,000 Hours
Estimated Color Shift Over Lifetime (CCT) 2% over 6,000 Hours
Certifications
CE, FCC, cTUVus, KC, NCC, ROHS
Estimated LED Lifetime (L70)
50,000 Hours
Dimensions
Fixture
No Accessory 60 x 60 x 0.5cm / 23.6 x 23.6 x .2in
With Soft Box 62.5 x 62.5 x 10.5cm / 24.6 x 24.6 x
4.13in
Aperture 52 x 51cm / 20.4 x 20in
Control Box 19 x 15 x 7cm / 7.4 x 5.9 x 2.7in
Carrying Case 66 x 35 x 10.5cm / 25.9 x 13.7 x 4.1in
Weight
Fixture
No Accessory 0.8kg / 1.76lbs
With Softbox 2.75kg / 6.06lbs
Control Grid 116g / 0.26lbs
Control Box 1.2kg / 2.6lbs
Power Supply 1.1kg / 2.4lbs
Mounting Bracket 0.66kg / 1.4lbs
Total 7.84kg / 17.28lbs
