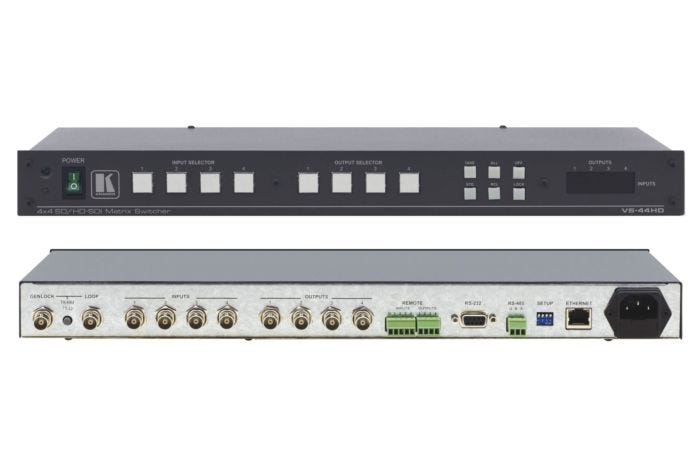

Kramer VS-44HD 4x4 HD-SDI & SDI Digital Video Matrix Switcher
The VS−44HD is a high−performance 4x4 matrix switcher for HD−SD signals, as well as a dual link 2x2 matrix switcher. Switching is implemented during the vertical interval period according to the SMPTE RP−168 standard, when using synchronized digital video sources.
- Max. Data Rate — 1.485Gbps.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M) & dual link (SMPTE 372M).
- Reclocking & Equalization — Automatic.
- Switching Synchronization — Synchronizes either to external reference or incoming video.
- Active Input Type™ Reporting — Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition
- (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
- Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed when needed.
- Take Button — Executes multiple switches all at once.
- Control — Front Panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, contact closure & IR remote (available upon request) .
- Analog Sync Type — Bi–level, tri–level.
- Selectable Sync Signal Termination.
- Front Panel Control Lockout.
- Vertical Interval Switching.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
- Kramer VS-44HD 4x4 HD-SDI & SDI Digital Video Matrix Switcher
- Switcher
- Power Cord
- Null-Modem Adapter
- Set of Rack Ears
- Seven-Year Warranty Against Defects in Material & Workmanship
| Input | (4) SDI SMPTE-259M, 292M, 344M serial video, 75 ohms on BNC connectors (1) genlock 75 ohms / Hi-Z on BNC connector |
|---|---|
| Output | (4) equalized and reclocked SMPTE-259M, 292M, 344M outputs 75 ohms on BNC connectors (1) looped genlock 75 ohms/ Hi-Z on BNC connector |
| Output Level | 800mVpp /75 ohms (maximum) |
| Bandwidth | Up to 1.485Gbps |
| Controls | Front-panel RS-232 RS-485 Ethernet Infrared remote Dry contact Panel lock |
| Power | Universal, 90 to 240VAC, 50/60Hz 22VA |
| Dimensions | 1.75 x 19 x 7" 1U rack height |
| Weight | 5.7 lbs (2.6kg) |
