Kramer 6 x 1:2 4K60 4:2:0 HDMI Auto Switcher and PoE Provider over HDBaseT
Availability:In stock
Cat No.
41588
SKU
VS-611DT
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,164.00
£970.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

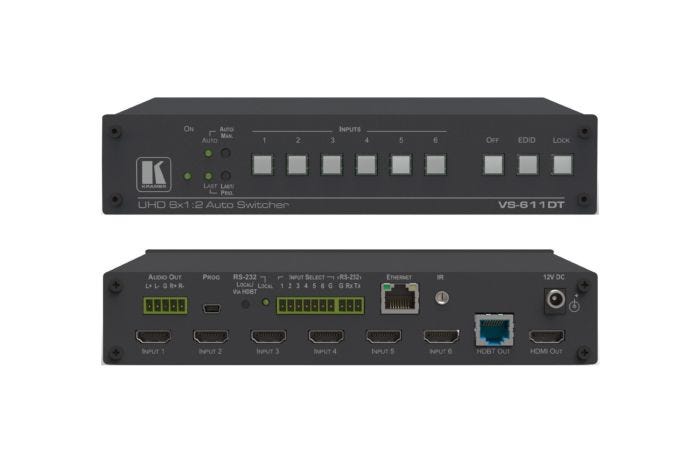

Kramer 6 x 1:2 4K60 4:2:0 HDMI Auto Switcher and PoE Provider over HDBaseT
- Resolution up to 4K@60Hz (4:2:0)
- POE source for HDBaseT receivers
- Supports extended range of HDBaseT out (100m @4K)
- RS–232, IR, Ethernet control: Local and over HDBaseT
- Max. data rate of 8.91Gbps
- Selectable switching — manual or fast auto switching
| Inputs | 6 HDMI connectors, 1 IR on a 3.5mm mini–jack |
|---|---|
| Outputs | 1 HDMI connector, 1 HDBaseT on an RJ–45 connector, 1 balanced stereo audio on a 5–pin terminal block |
| Ports | 1 Ethernet on an RJ–45 connector, 1 RS–232 connector on a 3–pin terminal block, 6 contact closures on a 7–pin terminal block,1 USB mini–A connector for firmware upgrading |
| Max. Data Rate | 8.91Gbps (2.97Gbps per graphic channel) with 4K@60Hz (4:2:0) support |
| Compliance with HDMI Standard | Deep Color, Ethernet, ARC, up to 7.1 Audio Channels, CEC |
| Output Resolutions | Up to UXGA, 4K x 2K, 4K @60 4:2:0 |
| Control | Local: front panel keyboard, contact closure, HDBaseT local and over HDBaseT: RS–232, Ethernet, IR |
| Software Support | Protocol 3000, K Router Plus, EDID Designer, K–Upload |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Power Consumption | 12V DC, 750mA |
| Included Accessories | Power adapter |
| Product Dimensions | 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H |
| Product Weight | 1.0kg (2.3lbs) approx. |
| Shipping Dimensions | 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H |
| Shipping Weight | 1.6kg (3.6lbs) approx. |
