Kino Flo FreeStyle Air RGB LED Light Panel (DMX System Universal Kit)
Availability:In stock
Cat No.
60496
SKU
SYS-FAIR
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£3,966.00
£3,305.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Kino Flo FreeStyle Air RGB LED Light Panel (DMX System Universal Kit)
The FreeStyle Air arrives ready to take its place as a lightweight accessory that integrates seamlessly with existing FreeStyle systems. Compatible with FreeStyle mounts, extension cables and LED-140 & LED-150 Series controllers, this portable thin profile panel offers the advantages of easy deployment and favorable cost of ownership to current FreeStyle owners and operators.
In addition to a twist-on mount for light stands, and corner bumpers for 4-point hangs, the FreeStyle Air comes with eyelets to simplify overhead and other surface attachment. Its rigid construction prevents any flex when handling and safeguards the integrity of its components. Usable LED life is extended with a proven passively-cooled design that ensures color and luminosity remain stable over the rated life of the LEDs.
Ease of maintenance is built into a user serviceable design. It features a removable upper rail and quick access to pull-out LED platens that are easily replaced or repaired.
Combining new mobility and reliable performance with familiar features, the FreeStyle Air delivers Kino Flo’s renowned Color Science LED technology in this lightweight addition to the range.
- Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
- Kelvin presets
- Dial-in color temperature control between 2500K-9900K
- Green/Magenta Control
- Hue angle and Saturation adjustments
- Kino Flo presets and Gels
- RGB control
- CIE xy
- FX Control
- Camera Profiles LUTs
- Color Space
- Works with Apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Universal input 100VAC-240VAC or 24VDC
- Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio®)
- DMX Auto Terminate
- The firmware is updatable from a PC using the Mini B USB data port

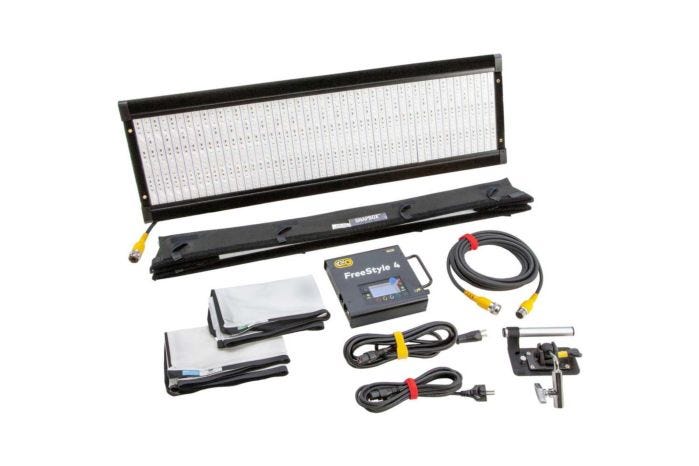

- 1 PAN-AIR FreeStyle Air LED Panel
- 1 LED-140X-230U FreeStyle 140 LED DMX Controller, Univ 230U
- 1 X12-F425 FreeStyle/4 Extension, 25ft
- 1 MTP-BG41S KinoGrip 41K Mount w/ Baby Receiver Short (16mm)
- 1 DOP-DFS-SXLM2L SNAPBOX® for Kino Flo Air
| Light Fixture | |
|---|---|
| Item Type | 1x LED Light Panel |
| Included Storage Case | No |
| Photometrics | 6500K: |
| 303 fc / 3270 Lux at 3.3' / 1 m | |
| 37 fc / 406 Lux at 9.8' / 3 m | |
| 14 fc / 152 Lux at 16.4' / 5 m | |
| Color Temperature | 2500 to 9900K |
| Color Modes | RGB, Daylight, Tungsten |
| Dimming | Controller Not Included |
| • 1 to 100% | |
| Cooling System | Passive |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Connectivity | |
| Mobile App Compatible | No |
| Power & I/O | |
| Power Source | AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included) |
| Battery (Not Included) *Requires Power Supply/Controller (Not Included) | |
| Inputs/Outputs | 1x Built-In Cable with Unspecified Power Input |
| Power Pass-Thru | No |
| Power Consumption | 100 W |
| Mounting | |
| Fixture Mounting | Proprietary |
| Environmental | |
| Environmental Protection | Dust-Resistant (IP20) |
| General | |
| Display | No |
| Dimensions | 39.5 x 13 x 2" / 100.3 x 33 x 5.1 cm |
| Weight | 5 lb / 2.3 kg |
| Kino Flo FreeStyle 140 LED DMX Controller For FreeStyle T44 Bulbs, (120 VAC Cord) Specs | |
| General | |
| Connections | Power |
| AC Input: IEC Connector | |
| DC Input: 3-Pin XLR | |
| DMX In & Out: 5-Pin XLR (Male & Female) | |
| USB: Mini-B | |
| Dimming Range | 100 to 1% Brightness |
| Power | Voltage |
| AC: 120 to 240 VAC, 50/60 Hz | |
| DC: 18 to 36 VDC, 150 W | |
| Draw | |
| AC: 1.25 A @ 120 VAC | |
| DC: 6.25 A @ 24 VDC | |
| Fuse | |
| 3.15 A/250 V | |
| Dimensions | 9.5 x 4.5 x 2.5" / 24.13 x 11.43 x 6.35 cm |
| Weight | 4.5 lb / 2.04 kg |
| Packaging Info | |
| Package Weight | 4.72 lb |
| Box Dimensions (LxWxH) | 12.5 x 10 x 3" |
| Kino Flo SnapBox For FreeStyle Air Panel (42 X 14") Specs | |
| Key Specs | |
| Item Type | Softbox (Rectangular Shape) |
| Light Compatibility | Direct Attachment (Requires No Bracket/Speed Ring) |
| Accepts Grids | Yes (Not Included) |
| Light Compatibility | Direct Attachment (Requires No Bracket/Speed Ring) |
| Quick Open Type | Collapsible |
| Accepts Grids | Yes (Not Included) |
| Removable Front Face | Yes |
| Interior Baffle | No |
| Materials | Fabric |
| Dimensions | 42 x 14 x 3" / 106.7 x 35.6 x 7.6 cm (Open) |
| Weight | 2.5 lb / 1.1 kg |
| Kino Flo KinoGrip K41 Twist-On Mount With 5/8" Baby Receiver Short Specs | |
| General | |
| Mount | 5/8" / 16 mm Baby Receiver |
| Packaging Info | |
| Package Weight | 1.9 lb |
| Box Dimensions (LxWxH) | 12.2 x 5.7 x 3.1" |
| Kino Flo FreeStyle/4 Extension Cable (25') Specs | |
| General | |
| Connector 1 | Proprietary Male |
| Connector 2 | Proprietary Female |
| Cable Length | 25' / 7.62 m |
| Packaging Info | |
| Package Weight | 2.185 lb |
| Box Dimensions (LxWxH) | 10.55 x 9.85 x 2.45" |
