£359.99
£299.99
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

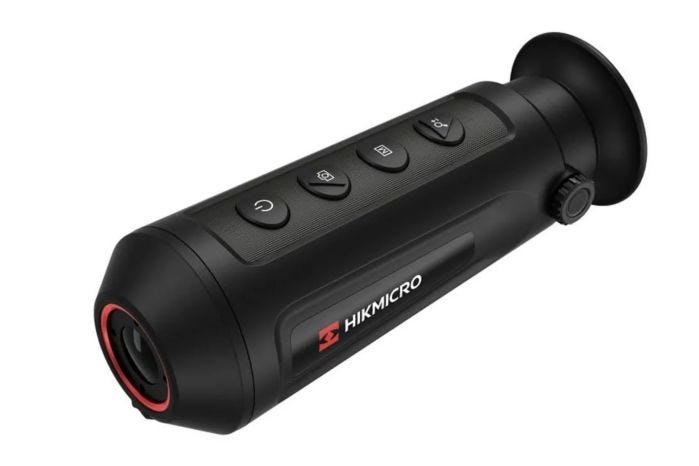

HIKMICRO Lynx 6mm
HIKMICRO LC06 handheld thermal monocular camera is equipped with a 160 × 120 infrared detector and a 720 × 540 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc
- High sensitivity thermal module with 160 x 120 resolution
- NETD < 35 mK (@25 ° C F#=1.1)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- 720 × 540 resolution 0.2-inch LCOS display
- Built-in rechargeable lithium battery
- Up to 10 hours continuous operation
- Wi-Fi hot spot
- Type-C Interface
| Thermal Module | |
|---|---|
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | 160 × 120 |
| Frame Frequency | 50 Hz |
| Pixel Interval | 17 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | ≤ 35 mK (@25°C),F#=1.1 |
| Focal Length | 6.2 mm |
| IFOV | 2.74 mrad |
| Field of View | 24.7° × 18.7° (H × V) |
| Aperture | F1.1 |
| Image Display | |
| Monitor | 0.2 inch, LCOS, 720 × 540 |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Digital Zoom | 1 ×, 2 ×, 4 × |
| Smart Function | |
| Hot Track | Yes |
| Detection Range | 219 m |
| System | |
| Storage | Yes |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Wi-Fi | Yes |
| Standby Mode | Yes |
| Power Supply | |
| Battery Type | Rechargeable Lithium Battery |
| Battery Operating Time | 10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C) 7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C) |
| Battery Capacity Display | Yes |
| General | |
| Power | 5 VDC/2 A, 1.5 W, Type-C Interface |
| Work Temperature/Humidity | From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less |
| Protection Level | IP67 |
| Dimension | 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24") |
| Weight | 250 g (0.55 lb) |
