HIKMICRO Lynx 2.0 15mm 384px Thermal Monocular

Availability:In stock
Cat No.
60022
SKU
HM-LH152.0
HIKMICRO

Order Now - Usually available to despatch in 1-2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£959.99 £799.99
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

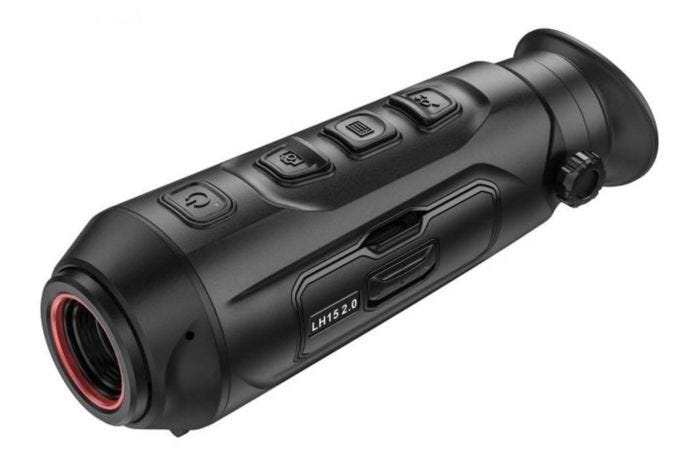

HIKMICRO Lynx 2.0 15mm 384px Thermal Monocular

There is no doubt that the LH15 2.0 can be the best choice for your first 20mK thermal monocular. With a powerful combination of a 384 thermal detector and a free-focus 15mm/F1.0, the LH15 2.0 features with 30.8m wide field of view and is capable of presenting its stunning quality in forest environments.

Sub-20mK High Sensitivity Brings Detailed and Informative Images

With high sensitivity (NETD20mK), the HIKMICRO LYNX 2.0 thermal monocular delivers detailed and informative images under all weather conditions.

Double-Charging Method and Fast Boot-On Bring More Lasting Use

The innovation of HIKMICRO LYNX 2.0 design is reflected in the power supply design. A replaceable and rechargeable battery can support 6.5 hours of continuous running. Moreover, the battery can charge both in the device and the battery charger. Plug and go.

Fast boot within 3s makes HIKMICRO LYNX 2.0 always ready for use.

Compact Size, Easy to Carry

HIKMICRO LYNX 2.0 is truly pocket-sized - less than 277g, it makes for a compact partner in all scenarios.

Software Revolution Brings a More Comfortable Visual Experience.

Personalized Settings Available to Enhance Visual Experience

The HIKMICRO LYNX 2.0 thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize and improve their visual experience by adjusting settings such as contrast, sharpness, and other personalized options.

Auto Screen Off Darkens the Screen to Save Energy and Increase Battery Time

The integrated algorithm automatically detects HIKMICRO LYNX 2.0’s exact position and activates the auto screen-off function. HIKMICRO LYNX 2.0 will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.

Sharing Your Exciting Moments

The integrated hotspot module makes the HIKMICRO Sight app a second display. Users can adjust the main parameters of HIKMICRO LYNX 2.0 thermal monocular, capture thrilling moments, and share them to social media immediately.

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 384 × 288
Frame Frequency 50 Hz
Pixel Interval  12 μm
Response Waveband  8 μm to 14 μm
NETD Less than 20 mK (@25°C), F# = 1.0
Focal Length 15 mm, f1.0
Image Display
Display 1024 × 768, 0.39 inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 6 mm
Eye Relief 20 mm
Digital Zoom  -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Smart Function
Hot Track Yes
Standby Mode Yes
Detection Range 458 m
System
Record Video  Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (16 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C Power Supply 5VDC, 2 A
General
Protection Level IP67
Dimension 164.0 mm × 56.0 mm × 60.8 mm
Weight 272 g without battery
Working Temperature -30°C to +55°C
