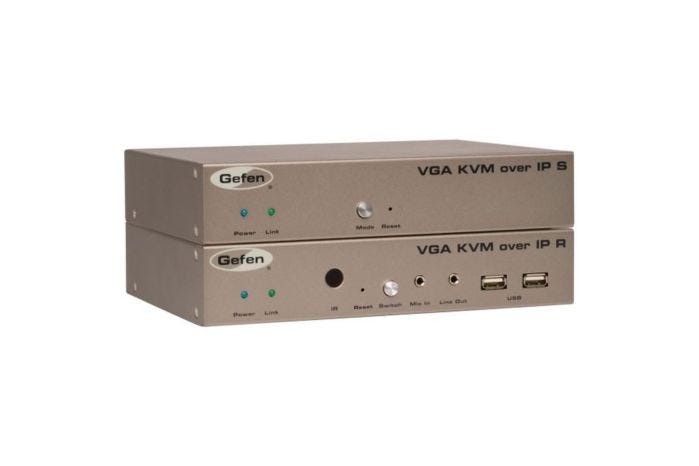

Gefen VGA KVM over IP – Sender Package
Availability:In stock
Cat No.
98228
SKU
EXT-VGAKVM-LANTX
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£510.00
£425.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen VGA KVM over IP – Sender Package
Maximum Video Bandwidth: 350 MHz
Video Input Connector (Sender): (1) VGA HD-15, female
Video Output Connector (Receiver): (1) VGA HD-15, female
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Sender): (1) 3.5mm mini-stereo jack
Mic Input (Receiver): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
USB Host Interface (Sender): (1) USB Type B, female
USB Device Connectors (Receiver): (2) USB Type A, female
RS-232 Connector (Sender): (1) DB-9, female
RS-232 Connector (Receiver): (1) DB-9, male
IR Emitter (Sender): (1) 3.5mm mini-mono jack
IR Extender (Receiver): (1) 3.5mm mini-stereo jack
IR Extender Type: EXT-RMT-EXTIRN
Ethernet connector (Sender): (1) RJ-45, shielded
Ethernet connectors (Receiver): (3) RJ-45, shielded
Mode button (Sender): (1) tact-type
ID Selector switch (Sender): (1) rotary-type
Switch button (Receiver): (1) tact-type
Reset button (Receiver): (1) tact-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Consumption (Sender / Receiver): 10W (max.)
Dimensions (Sender / Receiver) (W x H x D): 8.4" x 1.7" x 4.5" (213mm x 43mm x 113mm)
Shipping Weight:
EXT-VGAKVM-LAN: 8.3 lbs. (3.8 kg)
EXT-VGAKVM-LANTX: 5.7 lbs. (3.0 kg)
EXT-VGAKVM-LANRX: 4.6 lbs. (2.0 kg)
