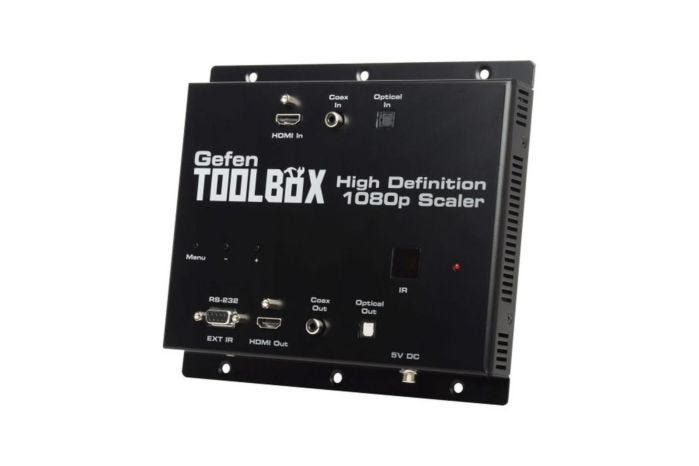

Gefen High Definition 1080p Scaler
Availability:In stock
Cat No.
97961
SKU
GTB-HD-1080PS-BLK
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£439.20
£366.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen RS232 extender
Now you can extend your RS-232 peripherals to a remote location 1000 feet (300 meters) away. Control your favorite Gefen products that use RS-232 or any other serial control devices that use RS-232. All 9-pins are perfectly reproduced from one end to the other.
- Scales digital video output up to 1080p Full HD and 2K
- Can be used as a down-scaler to support lower-resolution displays in multi-display distribution systems
- Supports DVI-D signals via appropriate adapters
- Supports Dolby® Digital, DTS-HD Master Audio, Dolby® TrueHD, and up to 8 channels of LPCM via HDMI.
- Supports Dolby® Digital AC3, DTS Digital Surround, and 2-channel LPCM via S/PDIF and TOSLINK.
- High performance frame rate conversion engine
- Auto 3:2 pull-down and 2:2 pull-down detection and recovery
- Aspect Ratio Control
- Digital audio delay to match audio / video timing
- Proprietary Advanced Color Engine Technology provides brilliant color, intensified contrast and details, vivid skin tones, and sharp edges
- Selectable audio input: HDMI, TOSLINK, or S/PDIF
- Built-in on-screen display (OSD) menu controlled via an optional remote control (sold separately)
- RS-232 control
- Field-upgradeable
- Wall-mountable
Maximum Pixel Clock: 225 MHz
Input DDC Signal: 5 V p-p (TTL)
Input Video Signal: 1.2 V p-p
HDMI Input: (1) Type A 19-pin, female
HDMI Output: (1) Type A 19-pin, female
Audio Input: (1) TOSLINK, (1) S/PDIF
Audio Output: (1) TOSLINK, (1) S/PDIF
RS-232 Serial Port: DB-9, female
IR Extender: 3.5 mm mini-stereo jack
Power Supply: 5 V DC, Locking
Dimensions: 8″ W x 7″ H x 1″ D
Shipping Weight: 4 lbs.
