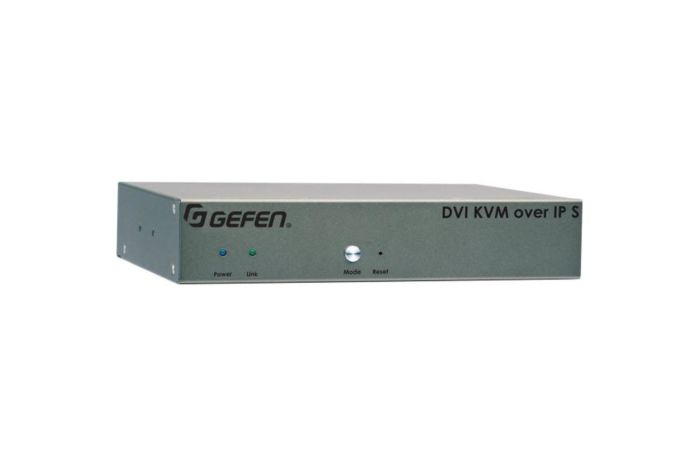

Gefen DVI KVM over IP w/ Local DVI Output – Sender Unit Package
Availability:In stock
Cat No.
98210
SKU
EXT-DVIKVM-LAN-LTX
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£450.00
£375.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen DVI KVM over IP w/ Local DVI Output – Sender Unit Package
- Multi-format video output for SD and HD video up to 1080p
- PC/HD resolutions up to UXGA / WUXGA (1920 x 1200)
- 39 timings, 41 patterns, and 4 data analysis patterns
- Supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:4:2 color spaces
- Supports NTSC and PAL frame rates
- 2 CH, 5.1 CH, and 7.1 CH LPCM internal sine wave generator
- RS-232 control via the downloadable software from the Gefen Web site
- Small form factor; easy to transport
- Supports HD timings for VGA output
- HDCP Pattern
- Supports reading and copying EDID functionality
- User Friendly Interface- LCD Display, LED indicators and Software
- Deep Color support up to 12-bit
- HDMI 1.3 and DVI 1.0 Compliant
- HDCP Compliant
Maximum Pixel Clock: 165 MHz
Video Input Connector (Sender): (1) DVI 29-pin, female, digital only
Video Local Output Connector (Sender): (1) DVI 29-pin, female, digital only
Video Output Connector (Receiver): (1) DVI 29-pin, female, digital only
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
USB Host Interface (Sender): (1) USB Type B, female
USB Device Connectors (Receiver): (4) USB Type A, female
RS-232 Connector (Sender): 1) DB-9, female
RS-232 Connector (Receiver): (1) DB-9, male
Ethernet connector (Sender): (1) RJ-45, female
Ethernet connectors (Receiver): (3) RJ-45, female
Mode button (Sender): (1) tact-type
+ / USB button (Receiver): (1) tact-type
– / Select button (Receiver): 1) tact-type
Reset button (Sender/Receiver): (1) tact-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Supply:
Sender: 5V DC 2.6A, locking
Receiver: 5V DC 4A, locking
Power Consumption:
Sender: 10W maximum
Receiver: 20W maximum
Dimensions (Sender/Receiver) (W x H x D): 8.4" x 1.7" x 4.5" (213mm x 43mm x 113mm)
Shipping Weight:
EXT-DVIKVM-LAN-L: 8.0 lbs. (3.6 kg)
EXT-DVIKVM-LAN-LTX: 5.7 lbs. (2.6 kg)
EXT-DVIKVM-LAN-LRX: 4.6 lbs. (2.0 kg)
