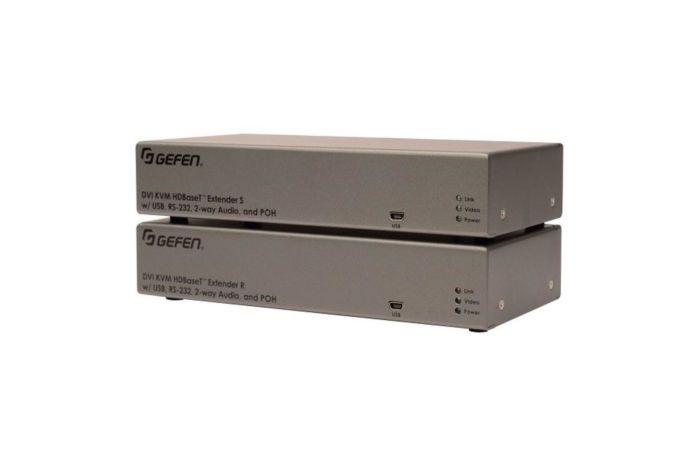

Gefen DVI KVM HDBaseT 2.0 Extender
Availability:In stock
Cat No.
97976
SKU
EXT-DVIKA-HBT2
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£815.29
£679.41
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen DisplayPort Extender over two CAT-7 Cables
The Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 allows the installation of a Hi-Def display up to 100 feet (30 meters) away from a DisplayPort source using two CAT-7 cables. Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD when using a single CAT-7 cable, and up to 2560 x 1600 (WQXGA) when using two cables, can be supported. HDCP is also supported. The Receiver unit is powered by the first CAT-7 cable that extends the DisplayPort signal from the Sender unit, eliminating the need for an external power supply on the Receiver unit.
Video Support
Supports resolutions up to 2560 x 1600 over two CAT-7 cables, and up to 1920 x 1200 or 1080p Full HD at 120Hz at over one CAT-7 cable
Audio Support
Supports up to 7.1 channels of linear PCM audio (32 kHz- 192 kHz sampling rate)
- Easily connect two DVI cables together
Maximum Pixel Clock: 300 MHz
Video Input connector (Sender): (1) DVI 29-pin, female, digital only
Video Output connector (Receiver): (1) DVI 29-pin, female, digital only
Link connector (Sender/Receiver): (1) RJ-45, shielded, female
USB Host Interface port (Sender): (1) USB Type B, female
USB Device ports (Receiver): (4) USB Type A, female
USB port for Gefen Syner-Gâ„¢ interface (Sender/Receiver): (1) Mini-B
RS-232 port (Sender): (1) DB-9, female
RS-232 port (Receiver): (1) DB-9, male
Analog L/R Line Audio Input connector (Sender): (1) 3.5mm mini-stereo jack
Analog L/R Mic/Line Audio Input connector (Receiver): (1) 3.5mm mini-stereo jack
Analog L/R Audio Output connector (Sender/Receiver): (1) 3.5mm mini-stereo jack
Mic/Line selector switch (Receiver): (1) slide type
Power/Video/Link Indicator LEDs (Sender/Receiver): (1) Blue, (1) Amber, (1) Green
Power Supply connector (Sender/Receiver): (1) 48V DC, locking
Power Consumption (Sender and Receiver combined): 13W
Operating Temperature: +32 to +122  °F (0 to +50  °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185  °F (-20 to +8(more…)
