Gefen 4x2 HDMI 4K60 Multi-viewer + Live Streaming
Availability:In stock
Cat No.
98417
SKU
GF-HD18G-MVLS42
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

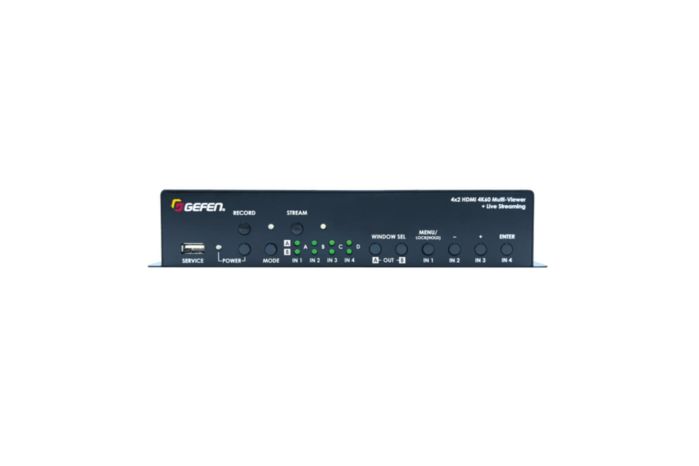

Gefen 4x2 HDMI 4K60 Multi-viewer + Live Streaming
- Controllable via front panel controls, IP (web server interface, Telnet, and UDP) and RS-232Input resolutions up to 4K 60 Hz 4:4:4, with HDCP 2.2§Output resolutions up to 4K 60 Hz 4:4:4
- User-selectable playback of 4K UHD HDMI audio content from any of the four inputs
- Analog L/R RCA Audio Breakout for use with outboard amplification systems
- Easy to use on-screen Graphical User Interface (GUI) and web server interface
- Video recording and streaming through various protocols
- Live WEBGUI Preview
- Smart CEC and Scheduling for digital signage applications
- Supports Transition effects and Seamless matrix switching to ensures no switching delay or no picture loss during transitions
- Chroma-key Capabilities
- Discoverable and Network configurable using the Gefen Syner-Gâ„¢ software
- Default pre-configured Multiview window arrangements can be accessed via front panel Video Mode push-button
- Custom user-configurable Multiview window layouts can be accessed via two front panel preset pushbuttons and via OSD
- Locking power supply connector
- Rack-mountable when using Gefen’s optional 19″ Vertically Stacked 6U Rack
- Video Input connectors: (4) HDMI Type A, 19-pin, female, locking
- Video Output connector: (2) HDMI Type A, 19-pin, female, locking
- Analog Audio Output connectors: (2) RCA jacks
- RS-232 connector: (1) 3-pin Pheonix
- IP Control connector: (1) RJ-45, shielded
- Video IP Stream connector: (1) RJ-45, shielded
- USB Connector: (2) Type A
- Mode button: (1) tact-type
- Input selector buttons: (4) tact-type
- Output/Window selector buttons: (2) tact-type
- Power Supply Connector: 3-pin locking plug
- Power Supply: 24V DC
- Power Consumption: TBD
- Operating Temperature: TBD
- Operating Humidity: TBD
- Storage Temperature: TBD
- Storage Humidity: TBD
- MTBF: TBD
- Dimensions: TBD
- Unit Weight: TBD
- Shipping Weight: TBD
