Gefen 4K Ultra HD HDMI KVM over IP - Receiver Package - with Power Cord for EU territories

Gefen 4K DisplayPort KVM over IP – Receiver Package – with Power Cord for UK territories

Gefen’s AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first-generation products.

The EXT-DPKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported.

USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

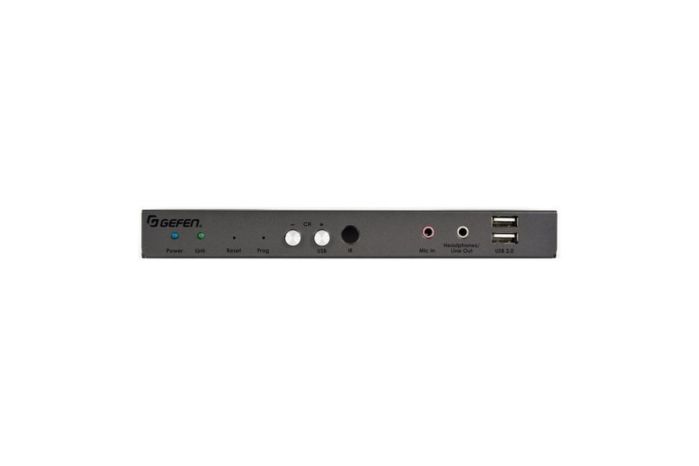

The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16×16 and provides great flexibility in sizing and manip(more…)

• Converts HDMI to SDI

• Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD

• Output resolutions up to 1080p60

• Supports HDMI 12 bit color and SDI 10-bit color

• Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr )

• Supports 3G-SDI Levels A and B

• Up to LPCM 7.1 audio support

• Field configurable via DIP switch settings or Gefen Syner-G software

• Gefen Syner-G simplifies in-field firmware updates and advanced EDID management

• Mini USB port for use with Gefen Syner-G

• Wide power supply operating range (6V to 24V DC)

• Locking power supply connector

• 1/4-20 industry-standard camera gear attachment thread on bottom

• Surface-mountable using the included detachable bracket

Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver): (1) TOSLINK ®

USB Host Interface port (Sender): (1) USB Type B, female

USB Device ports (Receiver): (2) USB 2.0 Type A, female

: (2) USB 1.1 Type A, female

RS-232 port (Sender): (1) DB-9, female

RS-232 port (Receiver): (1) DB-9, male

IR Sensor (Receiver): (1) Located on front panel

IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Ethernet port (Sender): (1) RJ-45, shielded, PoE

Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

Channel Up/USB-Request button (Receiver): (1) tact-type

Channel Down button (Receiver): (1) tact-type

Mode button (Sender): (1) tact-type, recessed (more…)
