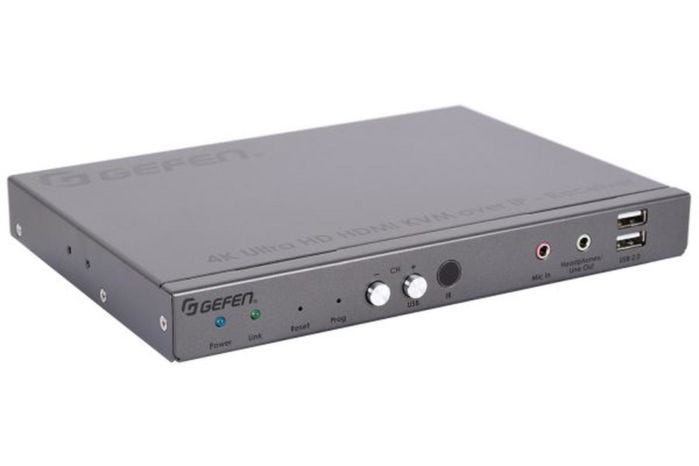

Gefen 4K Ultra HD HDMI KVM over IP - Receiver Package

Gefen DVI KVM over IP – Receiver Package – with Power Cord for Swiss territories

Gefen’s AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first-generation products.

The EXT-DVIKA-LANS-TX & RX support VESA and CEA resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz).

The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16×16 a(more…)



• Extends DVI up to 5600 feet (1.7 km) over a single-strand of OM3e/OM4 (50/125um) multimode fiber optic cable



• Extends DVI up to 4950 feet (1.5 km) over a single-strand of OM3 (50/125um) multimode fiber optic cable



• Extends DVI up to 3300 feet (1 km) over a single-strand of OM2 (50/125um) multimode fiber optic cable



• Extends DVI up to 1640 feet (500 meters) over a single-strand of OM1 (62.5/125um) multimode fiber optic cable



• Supports resolutions up to 1920 x 1200



• Supports DDWG standard for DVI-compliant monitors



• Uses single-strand multi-mode SC-terminated fiber optic cable



• EDID Programming feature enables quick and correct sync of source to display



• Fiber cable provides immunity from electromagnetic interference (EMI)



• Eliminates computer noise at your workstation

Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver): (1) TOSLINK ®

USB Host Interface port (Sender): (1) USB Type B, female

USB Device ports (Receiver): (2) USB 2.0 Type A, female

: (2) USB 1.1 Type A, female

RS-232 port (Sender): (1) DB-9, female

RS-232 port (Receiver): (1) DB-9, male

IR Sensor (Receiver): (1) Located on front panel

IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Ethernet port (Sender): (1) RJ-45, shielded, PoE

Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

Channel Up/USB-Request button (Receiver): (1) tact-type

Channel Down button (Receiver): (1) tact-type

Mode button (Sender): (1) tact-type, recessed (more…)
