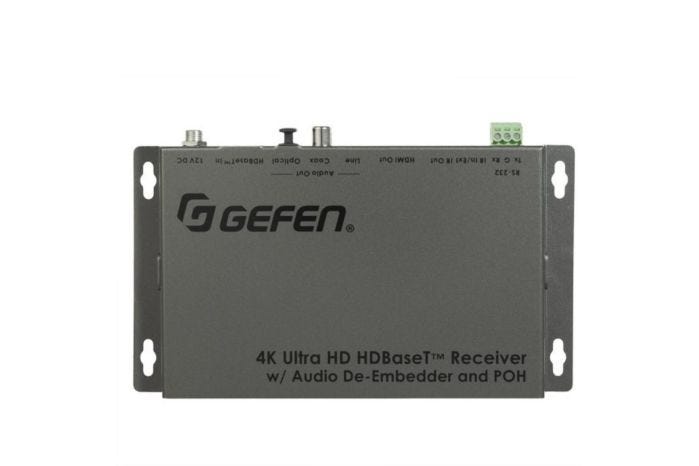

Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH

Gefen 4K Ultra HD 600 MHz 1:8 Splitter w/ HDR – with Power Cord for EU territories

Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. The Gefen EXT-UHD600-18 splitter distributes signal from one 4K source, and distributes it to up to eight 4K displays or video zones. The splitter features a 1U tall, rack-mountable enclosure that can also be placed on a shelf. It also accommodates Gefen locking HDMI cables for secure connections.

Video Support

Gefen’s Ultra HD 600MHz Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefens Ultra HD 600MHz Series creates a seamless bridge between the digital media of yesterday, today, and tomorrow. Supporting the digital rights management standa(more…)

• Supports HDMI Ethernet Channel (HEC), which consolidates video, audio, and data streams into a single HDMI cable, combining the unmatched signal quality and convenience of HDMI connectivity with the power and flexibility of home entertainment networking. It incorporates a dedicated data channel into the HDMI link, enabling high-speed, bi-directional networking at up to 100 Mb/sec.
• Supports the HDMI Audio Return Channel (ARC), which enables a TV, via a single HDMI cable, to send audio upstream to an A/V receiver or surround audio controller, increasing user flexibility and eliminating the need for any separate S/PDIF audio connection.
• Supports HD resolutions up to 4K (4096 x 2160) in sharp, vivid Deep Color with up to 8 channels of embedded digital audio

• Tested and certified up to HDMI Category 2 (340 MHz)

• High quality 28AWG copper conductors to deliver a pristine signal

• Multi-layer shielding protects signal from electromagnetic interference (EMI)

• Proprietary Mono-LOK technology provides a secure HDMI connection

Specifications*

Maximum TMDS Clock: 300 MHz

Total Signal Bandwidth/Data Rate: 10.2 Gbps

Video Output Connector: (1) HDMI Type A 19-pin, female

Link Connector: (1) RJ-45, shielded

L/R Analog Audio Output port: (1) 3.5mm mini-stereo jack

Optical Digital Audio Output port: (1) TOSLINK ®

Coaxial Digital Audio Output port: (1) RCA, female

RS-232 port: (1) 3-pin Phoenix

IR In/Ext port: (1) 3.5mm mini-stereo jack

IR Out port: (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Power Indicator LED: (1) Blue

Link Indicator LED: (1) Green

HDCP Indicator LED: (1) Green

RS-232 Pass-Thru/Prog Switch: (1) 3-position, slide-type

Power Supply: (1) 12V DC, locking, 5.5mm barrel/2.1mm pin

Power Consumption: Not powering a Sender: 9W maximum
:
Powering a Sender: 22W maximum

Operating Temperature: +32 to +122  °F (0 to +50  °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185  °F (-20 to +85  °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Overall Dimensions (W x H x D, not including the connectors):
Not including the mounting brackets: 6� x 0.65� x 4� (152mm x 17 x 100mm)
